Code: CECT201

As Per IS: 1727-1967 & 4031-1968, ASTM C-349-64.

For making standard rectangular specimens of 40 x 40 x 160mm. of Portland and pozzolana cement mortal for determiningthe transverse strength.

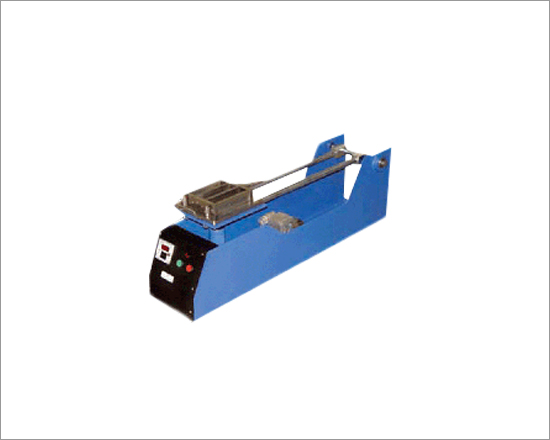

Specifications: The jolting apparatus consists of a rectangular table rigidly connected by two support arms to a spindle at a horizontal distance of 800mm from the center of the table. There is a projecting lug with a plane face on the ower face of the table beneath which is a stop with a rounded upper surface. The table can be raised and allowed to fall freely on the stop by a cam which is connected to a motor and gear box through a V-beltand pulleys. The cam rotates at a rate of 60 rev./min. A stroke counter fitted with micro-switch is provided which stop the machine after 60 jolts. Locating pins are provided formounting the mould compartments on the table. The mould surmounted by the hopper can be clamped rigidly to the table. Supplied complete with mould and hopper. Suitable for operation on 230 Volts, single phase, A.C. supply. Spares andAccessories: (1) Steel mould with base platehaving three compartments each having (2) Apparatus for demoulding the specimen.

Code: CECT206

As Per IS: 1727 & 4031-1968; ASTM C 109.

It is used for testing 40mm x 40mm x 160mm mortal specimens for flexural strength. (Rilem- Cembureau Test) by single pointed loading.

Specifications: It is a motorized, mechanical unit. The speed is adjusted so that the load increase on the specimen is between4 to 6kg/sec. A flexure test attachment for keeping the specimen in position is also supplied. This consists of two rollers 10mm. diameter and spaced 100mm apart, and a third roller of the same diameter equidistant from 10mm. diameter and spaced 100mmapart, and a third roller of the same diameter equidistant from the first two and for transmitting the applied load to the oppositeface of the prism. The unit is for operation on 230 Volts, single phase, 50 cycles A.C. Supply. Loads are measured on a provingring fitted with a sensitive dial gauge. Supplied without proving Ring. Accessory: Proving Ring, Capacity 500Kn.

Code: CECT211

As Per IS: 516, ASTM C-29, C-31, C-39, C-57, C-138, C-192 AASHO T-29 & T-23.

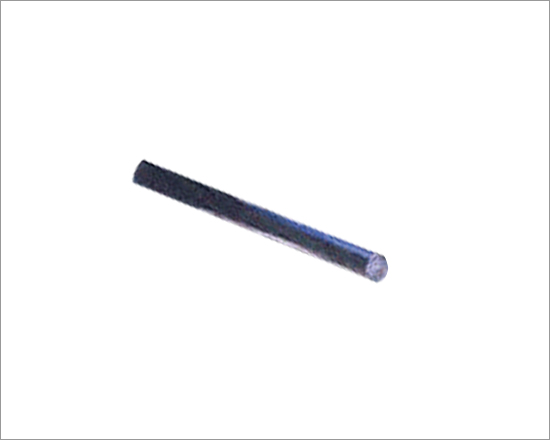

This is used for compacting concrete into cube moulds. This rod is made of steel. It is 16mm diameter, 60mm in length and rounded or bullet shaped at one end.

Code: CECT216

As Per IS: 516

Made of steel this is 40cm long, having a ramming face of 25mm sq. Other end has a grip, Weight approximate 2kgs.

Code: CECT221

As Per IS: 4031, 516, 10082, 10086

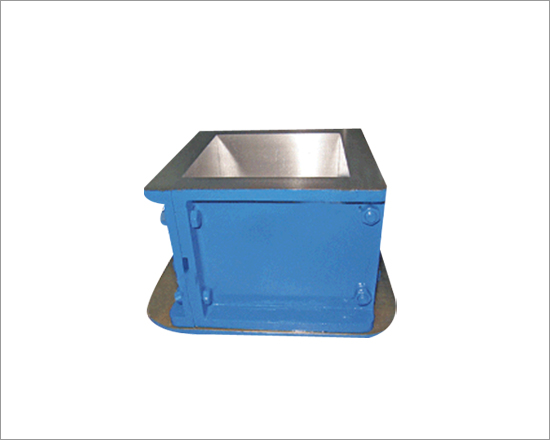

Cube Moulds

Specifications: These are avaiLable in different sized and made according to Indian and British Standarsa. For the metric size cube moulds, the faces are machined flat to +/-0.02mm accuracy and finished to within 0.2mm. For the inch size moulds, the faces are machined flat to +/-0.01 inches and finished to within 0.01 in. All moulds are supplied complete with base plate

• Model: ASI-546 - Mould Cast iron, for 50mm, cube
• Model: ASI-547 - With " ISI" Mark
• Model: ASI-548 - Mould gunmetal, for 50mm cube
• Model: ASI-550 - Mould steel for 7.06cms cube with loose base plate.
• Model: ASI-551 - Mould cast iron, for 7.06cms cube with loose base plate.
• Model: ASI-552 - With " ISI" Mark
• Model: ASI-555 - Mould cast iron, for 10cm cube
• Model: ASI-556 - With " ISI" Mark
• Model: ASI-560 - Mould cast iron, for 15cm cube
• Model: ASI-561 - With " ISI" Mark
• Model: ASI-565 - Mould cast iron, for 20 cm cube
• Model: ASI-570 - Mould cast iron, for 30 cm cube

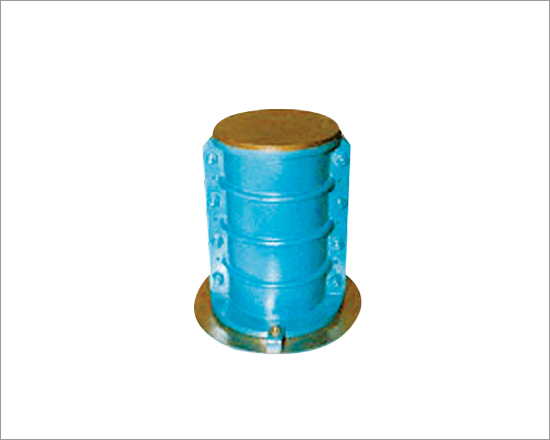

Code: CECT226

For Testing concrete cylinders for compressive strength tests.

Specifications: The moulds is split vertically into two parts. The mean internal diameter is within + 0.2mm and height is within + 1mm. The ends are machined to + 0.05. The base plate and top plate are machined flat to + 0.03 mm.

• Model: ASI-571 - Mould, Cylinder, Cast Iron, 15 cm dia. x 30cm height.
• Model: ASI-572 - With " ISI" Mark
• Model: ASI-575 - Mould, Cylinder, Cast Iron, 10 cm dia. x 20cm height.
• Model: ASI-580 - Mould, Cylinder, Cast Iron, 30 cm dia. x 60cm height.

Code: CECT231

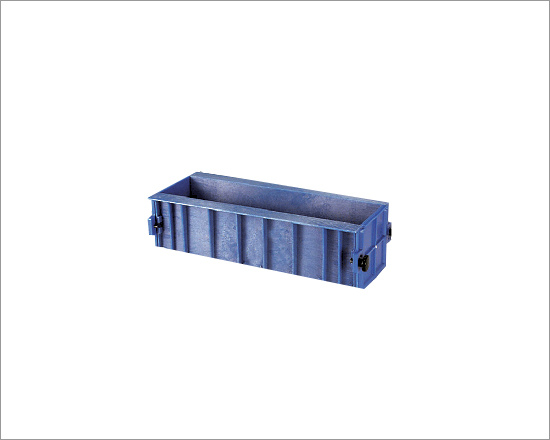

For casting, Concrete specimens for flexture tests.

Specifications: Made of cast iron. The moulds are made of 4 plates assembled together. Each moulds is supplied complete with base plate. Faces are machined flat to +0.2mm. and finished in size to 0.2mm.

• Model: ASI-581 - 10cm x 10cm x 50cm (IS.516-1959)
• Model: ASI-582 - 15cm x 15cm x 70cm (IS.516-1959)
• Model: ASI-583 - 4cm x 4cm x 16cm
• Model: ASI-584

Code: CECT236

For correct compressive strength of concrete cylinders, the end surfaces of the specimen must be truly flat. If they are not, using capping compound and a capper, the faces are plastered flat. Capping set can be used for cylindrical specimen likeconcrete cylinders of cores. They can be used in Laboratory or in field.

Code: CECT241

As Per IS: 516 1959, BS 1881, ASTM C 31, C 617.

For 15cm dia x 30cm length cylinders

Specifications: The set comprises of a cylinder capper, a cylinder carried and a ladle. The cylinder capper consists of a base on which two accurately machined plates are mounted vertically. One plate is firmly fixed and the other one is adjustable horizontally. Two plates are provided with holders for holding the cylinder in position. The holders are split and the bottom half of each holder is fixed firmly and the top half of each is removable and bolted down to the lower half. One the upper parts of the vertical plates V"s are provided for pouring the capping compound.Two spacers are also provided. Complete with cylinder carrier and ladle for molten compound.

Code: CECT246

For 100mm dia. x 200mm length cylinder.

Specifications: Same as above but for use with specimens 100mm dia. 200mm long.

Code: CECT251

As Per IS: 516-1959

For capping compression cylinder specimens. This apparatus can be used both in the Laboratory and in the field. The specimens capped in this apparatus have plane parallel faces.

Specifications: for cylinders 150mm dia. x 300mm long. Consists of a base with an upright. The upright serves as a guide for positioning the capping plate and the cylinder. The 19mm thick capping plate is machined accurately. There is a recess in the plate for keeping the molten capping compound and to position cylinder. Complete with cylinder carried and ladle.

Code: CECT256

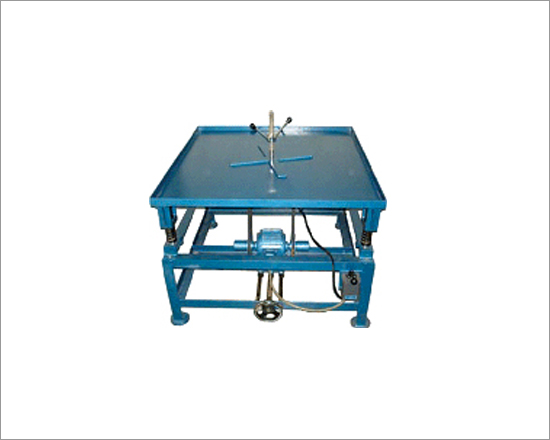

The vibrating Table is used for compacting concrete cubes and cylinders.

Specifications: It is designed to carry a load of 140Kg. The apparatus consists of a motor fitted with a variable pitch pulley housed in a cabinet. The vibrations are imparted by means of off-balance masses rotating on a shaft of a vibrator clamped to the underside of the table top. The table top is 50cm x 50cm. and has stops along its edges to prevent moulds from walking off the table during vibration. A cross arm adjustable on a vertical rod at the center of the table is provided to hold the moulds while operating the table. The variable pitch pulley arrangement permits the frequency to be varied sleeplessly between a maximum of 3600 vibrations down to 2600 vibrations per minute. A speed regulation handle is provided for increasing or decreasing the frequency. A switch is provided for starting the motor suitable for operation on 1440 volts, 3 phase, 50 cycles, A.C. supply. Note: Vibrating Tables of Tables top size 75cm x 75cm as well as 100cm are also avaiLable.

Code: CECT261

As Per IS: 4031-1968 & 1344-1959, BS: 12.

Concrete moulds are easily cast by using a tamping bar or a vibrating table. However air trapped in cement mortal paste can not be thus removed while casting cement mortal moulds. Easy method is to impart greater vibration of lesser amplitude to the mould while casting. This is achieved in a vibrating machine. Vibration of lesser amplitude to the mould while casting. This is achieved in a Vibrating Machine. Vibrating Machine is used for the preparation of mortar cubes for the determination of compression strength of ordinary and rapid hardening Portland cement, Low heat Portland cement, Portland blast furnace cement and high alumina cements.

Specifications: The machine consists of a vibrating frame assembly and an electric motor mounted on a sturdy base. The complete frame assembly consists of a vice to hold a 7.06cm cube mould and two studs threaded at top and a hopper to feed the sample in the mould. This assembly is supported on four springs and has an in built rotating shaft which rotates eccentrically and thus imparts vibrations to the entire frame. A balance weight is an integral bottom part of the frame. The center of gravity of the assembly is brought to the center of the eccentric shaft or within a distance of 25mm below it. The electric motor drives the shaft of the frame and thus imparts required vibrations to the mould. The frequency of vibration is 12000+/-400 vibration per minute. Supplied complete with on 7.06cm cube mould with loose base plate a time switch 0- 5minsx1min and certificate of vibration from a standard Laboratory.

Spares: Set of Springs. Belt and Belt guard.

Code: CECT266

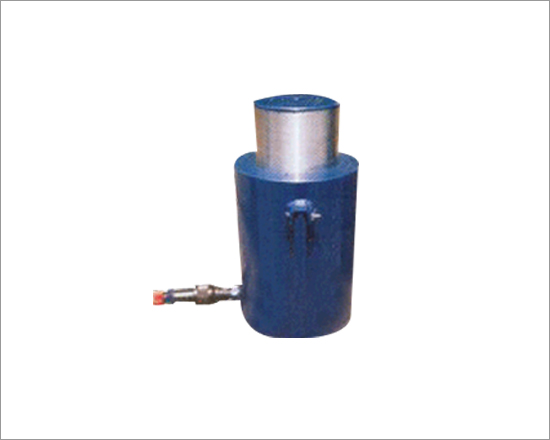

For applying loads for various tests in the field of Laboratory. Hydraulic jack hand operated with separate pumping units. These jacks are portable and avaiLable in various capacities. The pumping unit is connected to the hydraulic jack by means of a flexible connecting pipe 2 meter long. The jack is fitted with lifting handles for easy transportation. The approximate lift of the ram is 90 to 120mm. the pumping unit is a single plunger type with detachable handle. The unit is fixed on a channeled base which is fited with lifting handles. A pressure release valve is provided on the pumping unit. The load is indicated on 15cm dial hydraulic pressure gauge of appropriate capacity which can be detached from the pump when not in use. The least cont of the calibrated dial will be according to the capacity of the gauge (Normally 100 divisions for full capacity)

Code: CECT271

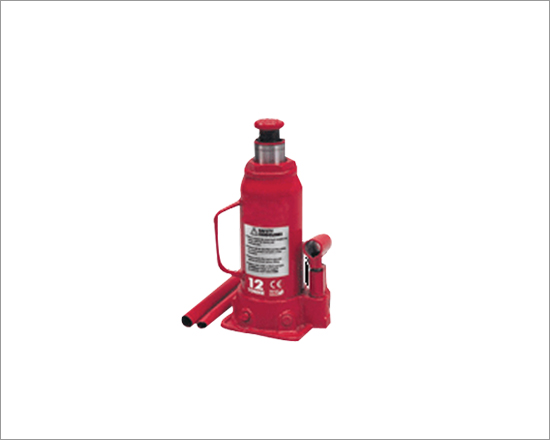

These are hydraulic jacks with integral pumping unit. The hydraulic pressure gauge is of 15cm dial on the side of hydraulic jack.

A detachable lever is provided to operate the pump. Lift of the ram is 95 to 100mm. Face of the ram is flat. Note: Hydraulic jacks of 1000Kn & 5000KN capacity can be supplied with two speed pumping units. These jacks have lift of approximately 200mm.

Code: CECT276

Capacity: 50 Tonnes.

Specifications: The hydraulic jack has a 25 mm diameter hole going through the center. It is designed for dual direction and had a working stroke of approximately 22cm. A specially designed hand operated pumping unit is supplied for operation in both directions. A detachable handle is provided for operating the pump. The load is indicated on a 15cm dial hydraulic pressure gauge calibrated 0-50000 x 500kg. Note: Central hole jacks of other capacities can also be supplied on special request.

Code: CECT281

Consisting of unto eight jacks connected through a manifold to an electrically operated pumping unit with single/multiple pressure gauges-price on request.

Flexible pipes: High Pressure hoses for the hydraulic jacks can be supplied at extra cost. These pipes are available in 1 meter length with end connections. Set of platens for self aligning action.

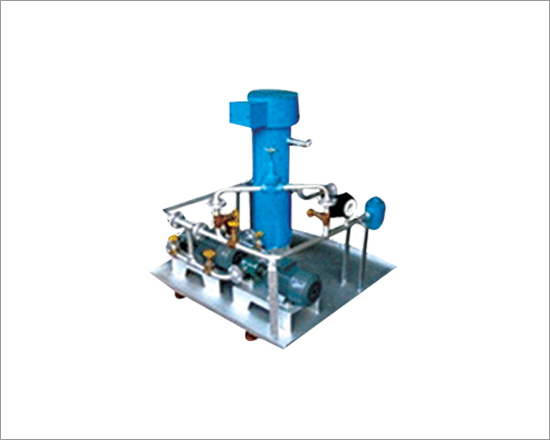

Code: CECT286

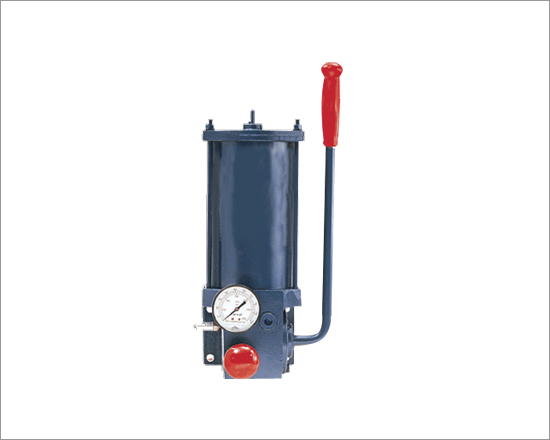

Manufactures a wide ranges of hydraulic pumping units. These are hand operated of electrically operated. The pumping units are suitable for applying load is a load frame of applying pressure to hydraulic jacks. The special features of pumping units is that the plungers of the pump have tolerances and no seals are used in the units and special type of non return valves as against traditonalball valves are used, which gives much longer trouble free service. Electrical Pumping Units work on 230Volts A.C. or 440 volts A.C.3 phase depending upon their capacity and these can be operated by hand in case of power failure. The front panel accommodate pressure gauge, on/off switch, slow fast lever to control the rate of loading and indicator lamps. Further in electrical units a micro switch fitted in the pressure gauge and a connected to a relay automatically cuts of the power supply to the unit when gauge capacity is reached. A dummy pointer to record maximum load applied is fitted on the cover glass. In hand operated pumping units, two plungers of different diameter are used. The plunger with larger diameter pumps oil at faster rage and is used for initial loading. Further load is easily applied by the second pump which has a smaller diameter plunger, The lever for operation of the pump is sufficiently long to minimize efforts and these units are suitable for site use.

Code: CECT291

Note:1. On Electrically operated Pumping Units additional gauge of lower capacity with an isolation valve can be fitted at extra cost. , 2.We can also supply and Electrical Pumping Units of capacity 100 tones or more with a manifold to connect to a number of jacks, maximum upto six jacks. This is useful to structural loading at different points.

Code: CECT296

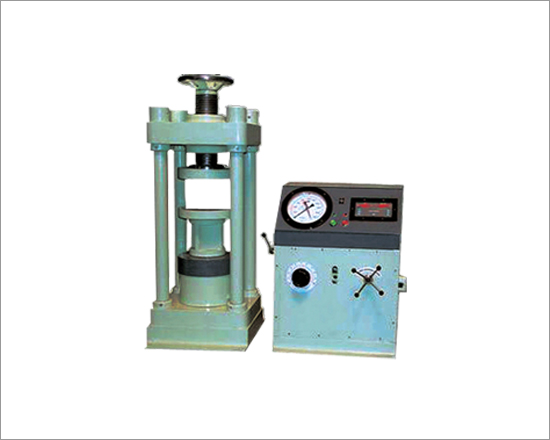

Strength of Concrete is a very important aspect during construction. Strength of concrete is obtained by crushing the specimen form of cubes of cylinders. Concrete is carefully designed for a particular compressive strength by the Engineers and specimen is tested by applying load in a compression Testing Machine. Manufactures a range of Compression Testing Machine from 10 Tonnes to 200 Tonnes in different models. Portable models are very convenient and useful for site use where carrying frequently the specimens for testing in a standard Laboratory is inconvenient and uneconomical. With special attachment the machines can also be use for bricks hallow or solid concrete blocks, using appropriate capacity machine In general a Compression Testing Machine consists of a Load Frame with suitable platens and a Pumping Unit with Pressure Gauge, either hand operated or electrically-cum-hand operated. Load Frame and Pumping unit are connected by pressure pipes.
