Water Distillations and Stills


Educational Equipments Manufacturer, Exporters & Suppliers - School Educational Equipments Manufacturers & Exporters of Educational Equipments for Lab. Science Lab Products, Teaching Aids, Classroom Instruments, Educational Laboratory

Water Still

Electrically operated, it gives pyrogen free distilled water. The main body is made of stainless steel sheet. A triple vapour baffle of stainless steel is provided, the lid gets automatically sealed by water forming in a recess in the head of the lid and this minimises the loss of steam. The still is fitted with immersion type elements which are capable of displacing the connectors if the still runs dry. However to ensure long service special care should be taken to avoid the still running dry as the protective arrangement cannot be expected to last beyond three operations. In case of burn out of the heating elements it can be easily replaced. The stated output of the Still is approximate as it is bound to vary according to the voltage of the mains. The still is provided with wall brackets.

Catalog No. Particulars
SLEP1351 Water Still, Capacity 2 Litre per hour, Rating 1.5 Kw.
SLEP1352 Water Still, Capacity 4 Litre per hour, Rating 3.0 Kw.

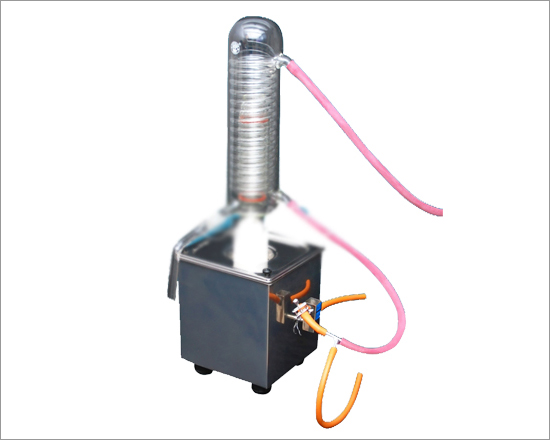

Water Still, Table Model

Water Still all stainless steel table model provided with insulated boiling chamber to prevent heat loss. With a capacity of 4 litres/hr.

Catalog No. Particulars
SLEP1357 Water Still, Table Model

Water Still, Table Model, Stainless Steel Chamber

Water Still all stainless steel table model provided with insulated boiling chamber to prevent heat loss. With a capacity of 4 litres/hr. Model with stainless steel insulated boiling chamber and special borosillicate glass condenser also available.

Catalog No. Particulars
SLEP1362 Water Still, Table Model, Stainless Steel Chamber

Water Still, Automatic

It has a joint less circular chambers of aluminium casting, condenser of stainless steel, lid of cast aluminium with a heat proof glass window, a baffle cup and a overflow arrangement. Vertical brackets for fitting to the wall are provided. It is fitted with a immersion type easily replaceable heater which cuts of automatically if the water is less. Works on 220/230 volts AC/DC.

Catalog No. Particulars
SLEP1367 Water Still, Automatic, Capacity 2 Litre per hour, Rating 1.5 Kw
SLEP1368 Water Still, Automatic, Capacity 4 Litre per hour, Rating 3.0 Kw
SLEP1369 Water Still, Automatic, Capacity 6 Litre per hour, Rating 4.0 Kw

Automatic All Glass Distillation Apparatus, Single Stage

Complete with metallic stand, plug, board etc.

Catalog No. Particulars
SLEP1374 Automatic All Glass Distillation Apparatus, 3 Litre, Single Stage Distillation with flask
SLEP1375 Automatic All Glass Distillation Apparatus, 5 Litre, Single Stage Distillation with flask
SLEP1376 Automatic All Glass Distillation Apparatus, 10 Litre, Single Stage Distillation with flask

Automatic All Glass Distillation Apparatus, Double Stage

Complete with metallic stand, plug, board etc.

Catalog No. Particulars
SLEP1381 Automatic All Glass Distillation Apparatus, 3 Litre, Double Stage Distillation with flask
SLEP1382 Automatic All Glass Distillation Apparatus, 5 Litre, Double Stage Distillation with flask
SLEP1383 Automatic All Glass Distillation Apparatus, 10 Litre, Double Stage Distillation with flask

Automatic All Glass Distillation Apparatus, Triple Stage

Complete with metallic stand, plug, board etc.

Catalog No. Particulars
SLEP1388 Automatic All Glass Distillation Apparatus, 3 Litre, Triple Stage Distillation with flask
SLEP1389 Automatic All Glass Distillation Apparatus, 5 Litre, Triple Stage Distillation with flask
SLEP1390 Automatic All Glass Distillation Apparatus, 10 Litre, Triple Stage Distillation with flask

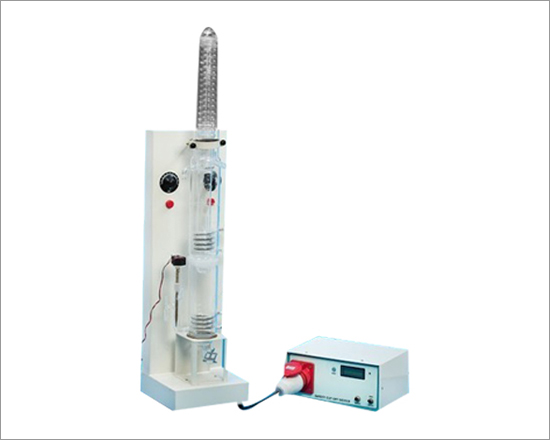

All Quartz Double Distillation Apparatus

It has been designed keeping in view customer requirements and easy serviceability of the equipment. All Quartz Double Distillation consists of demountable upper and lower boiler. The lower boiler has a built in heater enclosed in a quartz boiler with a cup on top. The upper boiler has a built in quartz coil and condensing unit which is mounted on the boiler with the help of ball and socket joint. Double walled condenser ensures separate condensation of vapors coming from the two boilers using a single cooling circuit. The unit in mounted on a specially designed powder coated stand and is also provided with Safety Control Unit.

  • Quality Parameters : Specific Conductivity : 0.1-0.5 µs/cm Biological Activity (distillate quality): Pyrogen Free pH: 6.0-7.0 Organic Matter: Nil Total Solids: 0.1 mg/ltr Silica: <0.01 mg/ltr>
  • Special Advantages of Demountable Model : Easy Cleaning of the first boiler since it can be dismantled from the assembly. Ease of interchangeability as it is provided with ball & socket joint. Boiler & condenser have larger boiling space resulting in balanced boiling & improved Quality of distillate. Compact and easy to install.


Catalog No. Particulars
SLEP1395 All Quartz Double Distillation Apparatus, Output Capacity (Approx.): 1.5 Litres/hour, Power Rating (Total): 3KW, Cooling Water Consumption (Approx.): 50 Litres/Hour
SLEP1396 All Quartz Double Distillation Apparatus, Output Capacity (Approx.): 2.5 Litres/hour, Power Rating (Total): 5KW, Cooling Water Consumption (Approx.): 70 Litres/Hour
SLEP1397 All Quartz Double Distillation Apparatus, Output Capacity (Approx.): 3.5 Litres/hour, Power Rating (Total): 7KW, Cooling Water Consumption (Approx.): 90 Litres/Hour
SLEP1398 All Quartz Double Distillation Apparatus, Output Capacity (Approx.): 4.0 Litres/hour, Power Rating (Total): 8KW, Cooling Water Consumption (Approx.): 120 Litres/Hour
SLEP1399 All Quartz Double Distillation Apparatus, Output Capacity (Approx.): 5.0 Litres/hour, Power Rating (Total): 9KW, Cooling Water Consumption (Approx.): 150 Litres/Hour

All Quartz Double Distillaton Apparatus, Horizontal Model

Features
  • Replaceable Silica Heater : The horizontal quartz jacket is fitted with removable silica heater and screw threaded connectors for ease of cleaning.
  • Distillate temperature is approx. between 25° to 45° C which is ensured by an efficient condenser.
  • The stand is powder coated for rust free operation and lustrous appearance.
  • Cooling water from the condenser is re-circulated into the boiling chamber, hence saving energy.
  • Screw Threaded Connectors : These are provided for easy plumbing & Installation to avoid any glassware breakage during assembly.
  • Fuse is provided for safety in case of voltage fluctuation or short circuit.
  • Boiler is provided with Replaceable Constant Level Device for easy draining and cleaning of boiling chamber.


Additional In-built Safety Features :
  • Gate Valve : Conserves cooling water wastage in case of power failure.
  • Flow Switch : In-built safety feature for the equipment unit shut off in case of cooling water failure.
  • Temperature switch : The boiler is equipped with a safety temperature switch which shuts off the unit if water level in the boiler falls below the heater, thus saving the glass parts from any damages.


Catalog No. Particulars
SLEP1404 All Quartz Double Distillation Apparatus, Horizontal Model, Output Capacity (Approx.): 1.5 Litres/hour, Power Rating (Total): 3KW, Cooling Water Consumption (Approx.): 50 Litres/Hour
SLEP1405 All Quartz Double Distillation Apparatus, Horizontal Model, Output Capacity (Approx.): 2.0 Litres/hour, Power Rating (Total): 4KW, Cooling Water Consumption (Approx.): 65 Litres/Hour
SLEP1406 All Quartz Double Distillation Apparatus, Horizontal Model, Output Capacity (Approx.): 2.5 Litres/hour, Power Rating (Total): 5KW, Cooling Water Consumption (Approx.): 70 Litres/Hour
SLEP1407 All Quartz Double Distillation Apparatus, Horizontal Model, Output Capacity (Approx.): 3.5 Litres/hour, Power Rating (Total): 6KW, Cooling Water Consumption (Approx.): 90 Litres/Hour
SLEP1408 All Quartz Double Distillation Apparatus, Horizontal Model, Output Capacity (Approx.): 4.0 Litres/hour, Power Rating (Total): 7KW, Cooling Water Consumption (Approx.): 120 Litres/Hour
SLEP1409 All Quartz Double Distillation Apparatus, Horizontal Model, Output Capacity (Approx.): 5.0 Litres/hour, Power Rating (Total): 8KW, Cooling Water Consumption (Approx.): 150 Litres/Hour

Single Stage Quartz Distillation Apparatus

The apparatus consists of a boiler made from high purity quartz with built in heater and bottom discharge joint for easy cleaning of deposits. A spiral condenser is fitted on the boiler with receiving adapter. The unit comes with safety control unit (Optional) to protect the glass parts parts in case of water failure or overheating.

Quartz can withstand very high temperature variation, thus it is a thermal shock proof.
  • Conductivity: 1.0-1.5 uS/cm with Borosilicate Condenser
  • Conductivity: 0.5-0.8 uS/cm with Quartz Condenser
  • Distilled water quantity: pyrogen Free pH: 5.5-6.0
  • Distillate temperature: 50-60C


Advantages :
  • Rust Proof sturdy alluminium stand as base.
  • Replaceable clamps are provided for better adjustment and alignment of the boiler and condenser.


Advanced Features :
  • Distillate is pyrogen free; also it is free of heavy metals.
  • Low maintenance is required.


Catalog No. Particulars
SLEP1414 Single Stage Quartz Distillation Apparatus, Borosilicate Condenser ,Output Capacity(Approx): 2litre/Hour, Power Rating: 1.7kw, Cooling Water Consumption (Approx.): 35Litre/Hour
SLEP1415 Single Stage Quartz Distillation Apparatus, Borosilicate Condenser ,Output Capacity(Approx): 5litre/Hour, Power Rating: 4.4kw, Cooling Water Consumption (Approx.): 65Litre/Hour
SLEP1416 Single Stage Quartz Distillation Apparatus, Borosilicate Condenser ,Output Capacity(Approx): 8litre/Hour, Power Rating: 6.0kw, Cooling Water Consumption (Approx.): 90Litre/Hour
SLEP1417 Single Stage Quartz Distillation Apparatus, Borosilicate Condenser ,output capacity(Approx): 10litre/Hour, Power Rating: 9.0kw, Cooling Water Consumption (Approx.): 120Litre/Hour
SLEP1418 Single Stage Quartz Distillation Apparatus, Borosilicate Condenser ,Output Capacity(Approx): 10litre/Hour, Power Rating: 9.0kw, Cooling Water Consumption (Approx.): 120Litre/Hour
SLEP1419 Single Stage Quartz Distillation Apparatus, Quartz Condenser ,Output Capacity(Approx): 2litre/Hour, Power Rating: 1.7kw, Cooling Water Consumption (Approx.): 35Litre/Hour
SLEP1420 Single Stage Quartz Distillation Apparatus, Quartz Condenser ,Output Capacity(Approx): 5litre/Hour, Power Rating: 4.4kw, Cooling Water Consumption (Approx.): 65Litre/Hour
SLEP1421 Single Stage Quartz Distillation Apparatus, Quartz Condenser ,Output Capacity(Approx): 8litre/Hour, Power Rating: 6.0kw, Cooling Water Consumption (Approx.): 90Litre/Hour
SLEP1422 Single Stage Quartz Distillation Apparatus, Quartz Condenser ,Output Capacity(Approx): 10litre/Hour, Power Rating: 9.0kw, Cooling Water Consumption (Approx.): 120Litre/Hour

Single Stage Quartz Distillation Apparatus, Horizontal Model

Features :
  • Replaceable Silica Heater : The horizontal quartz jacket is fitted with removable silica heater and screw threaded connectors for ease of cleaning.
  • Distillate temperature is approx. between 25° to 45° C which is ensured by an efficient condenser.
  • The stand is powder coated for rust free operation and lustrous appearance.
  • The unit automatically switches off if water level in the boiler falls below heater.
  • Cooling water from the condenser is re-circulated into the boiling chamber, hence saving energy.
  • Screw Threaded Connectors : These are provided for easy plumbing & Installation to avoid any glassware breakage during assembly.
  • Fuse is provided for safety in case of voltage fluctuation or short circuit.
  • Electrical Power : 220/240 V, 50/60Hz, Single Phase Supply.
  • Boiler is provided with Replaceable Constant Level Device for easy draining and cleaning of boiling chamber.


Unique Feature :
  • This model is equipped with in-built temperature switch to protect the Glass parts in case of water failure or overheating.


Additional Optional Accessories (At Extra Cost) :
  • Gate Valve : Conserves cooling water wastage in case of power failure.
  • Flow Switch : In-built safety feature for the equipment unit shut off in case of cooling water failure.


Catalog No. Particulars
SLEP1427 Single Stage Quartz Distillation Apparatus, Horizontal Modal, Borosilicate Condenser, Output Capacity : 2 Litre/Hour, Power Rating (Approx.) : 1.65 kw, Cooling Water Consumption : 35 Litre/Hour
SLEP1428 Single Stage Quartz Distillation Apparatus, Horizontal Modal, Borosilicate Condenser, Output Capacity : 5 Litre/Hour, Power Rating (Approx.) : 3.3 kw, Cooling WaterConsumption : 70 Litre/Hour
SLEP1429 Single Stage Quartz Distillation Apparatus, Horizontal Modal, Quartz Condenser, Output Capacity : 2 Litre/Hour, Power Rating (Approx.) : 1.65 kw, Cooling WaterConsumption : 35 Litre/Hour
SLEP1430 Single Stage Quartz Distillation Apparatus, Horizontal Modal, Quartz Condenser, Output Capacity : 5 Litre/Hour, Power Rating (Approx.) : 3.3 kw, Cooling WaterConsumption : 70 Litre/Hour

Automatic Water Distillation Equipment (Cabinet Model), Borosilicate Glass

This is a fully automatic water distillation equipment and can be used in research laboratories, hospitals etc. It is manufactured from Quartz glass. The distillation has following features :

Replaceable Silica Sheathed (Quartz) Heater : The horizontal jacket is fitted with removable silica sheathed heater and screw threaded connectors for ease of cleaning. Distillate temperature is approx. between 25° to 45° C which is ensured by an efficient condenser. The stand is powder coated for rust free operation and lustrous appearance. Cooling water from the condenser is re-circulated into the boiling chamber, hence saving energy.

Screw Threaded Connectors : These are provided for easy plumbing & Installation to avoid any glassware breakage during assembly. Fuse is provided for safety in case of voltage fluctuation or short circuit. Boiler is provided with Replaceable Constant Level Device for easy draining and cleaning of boiling chamber. The front cover is easily removable making the access to the glass parts very easy.

Additional built-In Safety Features :
  • Gate Valve : Conserves cooling water wastage in case of power failure.
  • Flow Switch : In-built safety feature for the equipment unit shut off in case of cooling water failure.
  • Temperature Switch : The boiler is equipped with a safety temperature switch which shuts off the unit if water level in the boiler falls below the heater, thus saving the glass parts from any damages.
  • Level Sensor : It shuts off the distillation equipment if the water level in the boiler falls below the heater.
  • Reservoir Level Sensor : This helps in automatic working of the water distillation equipment. Depending on the water level in the reservoir it will automatically switch On/Off the equipment, thus saving energy. (Reservoir can also be provided with a storage capacity of 5 ltr, 10 ltr& 20 ltr made of Borosilicate Glass or polypropylene.


Catalog No. Particulars
SLEP1435 Automatic Water Distillation Equipment (Cabinet Model), Quartz Glass, Output Capacity: 2 Litre/Hour, Single Stage, Conductivity uS/cm: 0.5-0.8, Cooling Water Requirement (Approx): 1.5 litre/Minute, Power Rating (total): 1.7KW
SLEP1436 Automatic Water Distillation Equipment (Cabinet Model), Quartz Glass, Output Capacity: 2 Litre/Hour, Double Stage, Conductivity uS/cm: 0.1-0.5, Cooling Water Requirement (Approx): 2.0 litre/Minute, Power Rating (total): 3.5KW
SLEP1437 Automatic Water Distillation Equipment (Cabinet Model), Quartz Glass, Output Capacity: 4 Litre/Hour, Single Stage, Conductivity uS/cm: 0.5-0.8, Cooling Water Requirement (Approx): 2-3 litre/Minute, Power Rating (total): 3.0KW
SLEP1438 Automatic Water Distillation Equipment (Cabinet Model), Quartz Glass, Output Capacity: 4 Litre/Hour, Double Stage, Conductivity uS/cm: 0.1-0.5, Cooling Water Requirement (Approx): 2-4 litre/Minute, Power Rating (total): 6.0KW

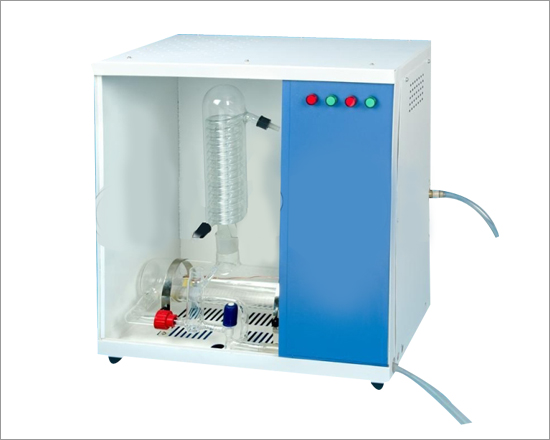

Automatic Water Distillation Equipment (Cabinet Model), Quartz Glass

This is a fully automatic water distillation equipment and can be used in research laboratories, hospitals etc. It is manufactured from Quartz glass. The distillation has following features :

Replaceable Silica Sheathed (Quartz) Heater : The horizontal jacket is fitted with removable silica sheathed heater and screw threaded connectors for ease of cleaning. Distillate temperature is approx. between 25° to 45° C which is ensured by an efficient condenser. The stand is powder coated for rust free operation and lustrous appearance. Cooling water from the condenser is re-circulated into the boiling chamber, hence saving energy.

Screw Threaded Connectors : These are provided for easy plumbing & Installation to avoid any glassware breakage during assembly. Fuse is provided for safety in case of voltage fluctuation or short circuit. Boiler is provided with Replaceable Constant Level Device for easy draining and cleaning of boiling chamber. The front cover is easily removable making the access to the glass parts very easy.

Additional built-In Safety Features :

Gate Valve : Conserves cooling water wastage in case of power failure. Flow Switch : In-built safety feature for the equipment unit shut off in case of cooling water failure. Temperature Switch : The boiler is equipped with a safety temperature switch which shuts off the unit if water level in the boiler falls below the heater, thus saving the glass parts from any damages. Level Sensor : It shuts off the distillation equipment if the water level in the boiler falls below the heater. Reservoir Level Sensor : This helps in automatic working of the water distillation equipment. Depending on the water level in the reservoir it will automatically switch On/Off the equipment, thus saving energy. (Reservoir can also be provided with a storage capacity of 5 ltr, 10 ltr& 20 ltr made of Borosilicate Glass or polypropylene.

Catalog No. Particulars
SLEP1443 Automatic Water Distillation Equipment (Cabinet Model), Quartz Glass, Output Capacity: 2 Litre/Hour, Single Stage, Conductivity uS/cm: 0.5-0.8, Cooling Water Requirement (Approx): 1.5 litre/Minute, Power Rating (total): 1.7KW
SLEP1444 Automatic Water Distillation Equipment (Cabinet Model), Quartz Glass, Output Capacity: 2 Litre/Hour, Double Stage, Conductivity uS/cm: 0.1-0.5, Cooling Water Requirement (Approx): 2.0 litre/Minute, Power Rating (total): 3.5KW
SLEP1445 Automatic Water Distillation Equipment (Cabinet Model), Quartz Glass, Output Capacity: 4 Litre/Hour, Single Stage, Conductivity uS/cm: 0.5-0.8, Cooling Water Requirement (Approx): 2-3 litre/Minute, Power Rating (total): 3.0KW
SLEP1446 Automatic Water Distillation Equipment (Cabinet Model), Quartz Glass, Output Capacity: 4 Litre/Hour, Double Stage, Conductivity uS/cm: 0.1-0.5, Cooling Water Requirement (Approx): 2-4 litre/Minute, Power Rating (total): 6.0KW

Water Still with Metal Heater Apparatus

It comprises of horizontal borosilicate glass boiler fitted with a 3 KW chromium plated immersion heater with cut-off, highly efficient coil condenser ensures a reliable output of single distillate. It is designed for easy usage, safe to operate and low cost.

Features :
  • Abundant Output : The still provides 4 ltr/hr of distilled water which is ideal for General Laboratory use and is capable for producing pyrogen free distillate.
  • Distillate temperature is approx. between 25° - 40° C which is ensured by highly efficient condenser.


Distillate Quality :
  • Output: 4 Litre/hour
  • Conductivity : 0.1-0.5 µs/cm
  • pH: 5.5-6.0
  • Distillate Quality: Pyrogen Free


Construction
  • The stand is powder coated for long and rust free operation.
  • The boiler and condenser are designed for high efficiency.
  • Boiler is provided with Teflon Screw Cork for easy draining and cleaning of boiling chamber.
  • Screw Threaded Connectors : These are provided for easy plumbing & Installation to avoid any glassware breakage during assembly.


Additional Operational Accessories (At Extra Cost) :
  • Gate Valve : Conserves cooling water wastage in case of power failure.
  • Flow Switch : In-built safety feature for the equipment unit shut off in case of cooling water failure.


Catalog No. Particulars
SLEP1451 Water Still With Sheathed Silica Heater Apparatus

Water Still With Sheathed Silica Heater Apparatus

Water stills are carefully designed to produce high purity pyrogen free distilled water. The water still made from 3.3 exp. borosilicate glass comprises of horizontal type boiler, condenser, constant level device, silica sheathed (Quartz) heater, along with stand and clamps.

Features :
  • Borosilicate condenser and boiler are fitted with a removable silica sheathed heater and screw threaded connectors for ease of cleaning.
  • Distillate temperature is approx. between 25° to 45° C which is ensured by an efficient condenser.
  • The stand is powder coated for rust free operation and lustrous appearance.
  • The unit automatically switches off if water level in the boiler falls below heater.
  • Cooling water from the condenser is re-circulated into the boiling chamber, hence saving energy.
  • Screw Threaded Connectors : These are provided for easy plumbing & Installation to avoid any glassware breakage during assembly.
  • Boiler is provided with Replaceable Constant Level Device for easy draining and cleaning of boiling chamber.
  • Fuse is provided for safety in case of voltage fluctuation or short circuit.
  • Electrical Power : 220/240 V, 50/60Hz, Single Phase Supply.


Unique Feature :
  • This model is equipped with in-built temperature switch to protect the Glass parts in case of water failure or overheating.


Additional Optional Accessories (At Extra Cost):
  • Gate Valve : Conserves cooling water wastage in case of power failure.
  • Flow Switch : In-built safety feature for the equipment unit shut off in case of cooling water failure.


Catalog No. Particulars
SLEP1456 Water Still With Sheathed Silica Heat Apparatus, Single Still, Conductivity: 1-2.0 us/cm, pH: 5.5-6.0, Output Capacity: 2.0 Litre/Hour, Cooling Water Consumption: 60 Litre/Hour, Power Rating: 1.5 kw
SLEP1457 Water Still With Sheathed Silica Heat Apparatus, Single Still, Conductivity: 1-2.0 us/cm, pH: 5.5-6.0, Output Capacity: 4.0 Litre/Hour, Cooling Water Consumption: 120 Litre/Hour, Power Rating: 3.0 kw
SLEP1458 Water Still With Sheathed Silica Heat Apparatus, Double Still, Conductivity: 0.8-1.0 us/cm, pH: 6.0-7.0, Output Capacity: 2.0 Litre/Hour, Cooling Water Consumption: 120 Litre/Hour, Power Rating: 3.0 kw
SLEP1459 Water Still With Sheathed Silica Heat Apparatus, Double Still, Conductivity: 0.8-1.0 us/cm, pH: 6.0-7.0, Output Capacity: 4.0 Litre/Hour, Cooling Water Consumption: 150 Litre/Hour, Power Rating: 6.0 kw
