Profile Projectors


Educational Equipments Manufacturer, Exporters & Suppliers - School Educational Equipments Manufacturers & Exporters of Educational Equipments for Lab. Science Lab Products, Teaching Aids, Classroom Instruments, Educational Laboratory

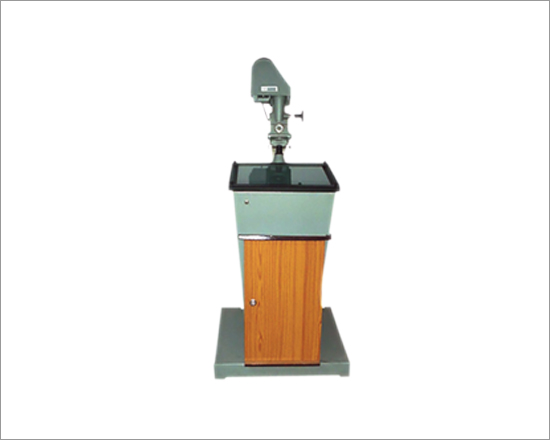

Profile Projector RPP-12

Code: BIPP0002

For accurate magnification, maximum luminosity, great contrast, uniform resolution to the edge of the screen, freedom from distortion of the images. It is supplied with standard lenses with magnification 25x and 50x for contour projection. The maximum visible part of the object on the screen are 11.2mm and 5.6mm respectively. The screen size is 330mmx380mm (13"x15"). The maximum diameter and length of work accommodated on the stage are 40mm x 150mm respectively. It is having wooden storing cabinet with lock and key for safe custody of lenses etc. The height and weight of the instrument is approximately 1448mm (4'-9") and 68 kg respectively optional available magnification 10x.

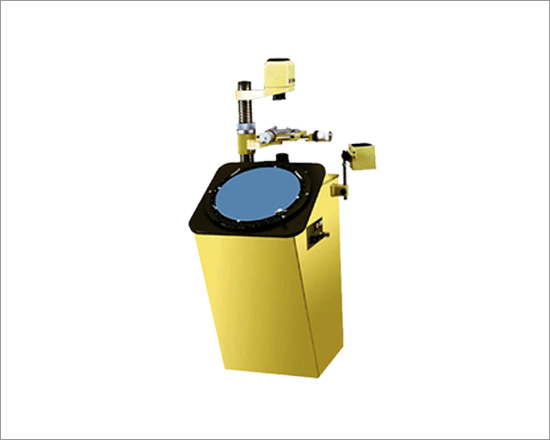

Profile Projector RPP-33

Code: BIPP0005

  • Screen: Antiglare hard glass screen, graduated & rotatable through 360° having least count 1 minute of an arc. Provided with four clips to hold overlay charts and drawings.
  • Mirrors: Optically true with surface hard coated to ensure optimum light reflection for best image contrast, long life and edge to edge sharpness on the projection screen.
  • Contour Illumination: Contour Illumination is provided with a 24V/150W halogen lamp having a built in condenser system. The illumination can be adjusted through a solid state transformer.
  • EPI-Illumination: A Specially designed 12V/100W halogen light ensures uniform surface illumination system for the above. This provides shadow less light on the optical axis for inspection of cavities etc.
  • Electrical: Mains input 220-240 volts AC having built in transformers, On-Off Switch, variable intensity controller for both illumination system, indicator and glass fuse.
  • Profile Projector RPP-33 Accuracy: Projection accuracy ± 0.1% for contour illumination and ± 0.15% for surface illumination.
  • Screen Size: 350mm
  • Lenses: 10x Objective (Standard)
Work Stage
  • Over all Size: 150mm x 150mm
  • Cross Movement: 50mm x 50mm (without measuring units)
  • Measurement: By Standard micrometer heads 0-25mm
  • Least count: 0.01mm
  • Standard Accessories: Supplied complete as above, with standard multilayer coated objective, spare bulb, a vinyl cover and operating instructions manual.
  • Optional Accessories: Objectives 20x and 50x, V-Block with clamp, Swivel Center Support Holder, Digital Readout System, Digital Protractor, Work Stage, Calibrated Glass Scales, Standard Overlay Charts etc.

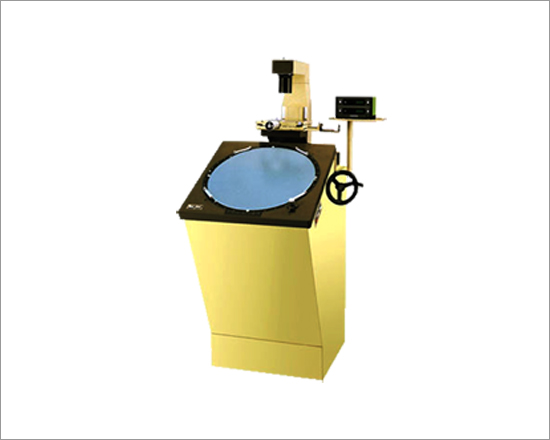

Profile Projector RPP-44

Code: BIPP0008

  • Screen: Antiglare hard glass screen, graduated & rotatable through 360° having least count 1 minute of an arc. Provided with four clips to hold overlay charts and drawings.
  • Mirrors: Optically true with surface hard coated to ensure optimum light reflection for best image contrast, long life and edge to edge sharpness on the projection screen.
  • Contour Illumination: Contour Illumination is provided with a 24V/150W halogen lamp having a built in condenser system. The illumination can be adjusted through a solid state transformer.
  • EPI-Illumination: A Specially designed 12V/100W halogen light ensures uniform surface illumination system for the above. This provides shadow less light on the optical axis for inspection of cavities etc.
  • Electrical: Mains input 220-240 volts AC having built in transformers, On-Off Switch, variable intensity controller for both illumination system, indicator and glass fuse.
  • Accuracy: Projection accuracy ± 0.1% for contour illumination and ± 0.15% for surface illumination.
  • Screen Size: 400mm
  • Lenses: 10x Objective (Standard)
Work Stage
  • Over all Size: 300mm x 200mm
  • Cross Movement: 150mm x 100mm (without measuring units)
  • Measurement: By fine zero adjustment micrometer head 0-50mm.
  • Least count: 0.001mm
  • Standard Accessories: Supplied complete as above, with standard multilayer coated objective, spare bulb, a vinyl cover and operating instructions manual.
  • Optional Accessories: Objectives 20x and 50x, V-Block with clamp, Swivel Center Support Holder, Digital Readout System, Digital Protractor, Work Stage, Calibrated Glass Scales, Standard Overlay Charts etc.

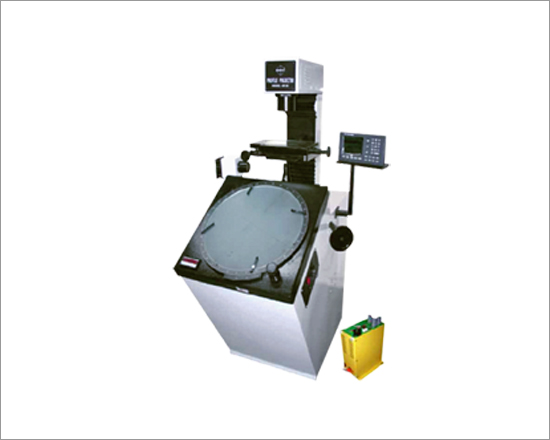

Profile Projector RPP-50

Code: BIPP0011

  • Screen Diameter: 500mm
  • Work Stage: 350 x 200mm
  • Stage Travel X-Y axis: 150 x 100mm
  • Focussing Range: 125mm
  • Magnification Standard: 10x
  • Magnification Optional: 20x, 25x, 50x, 100x
  • Protactor Screen: 360° Rotation with 2 minutes vernier resolution
  • Magnification Accuracy: ± 0.05% on contour and ± 0.1% on surface
  • Lens Mounting: 3 turret type for safety and easy use
  • Resolution: 0.001mm
  • Measuring System: With Mechanical micrometer 0-25mm / DRO / Data Processor (selectable), (optional PC based software)
  • Illumination: 24V, 150W Halogen, Forced Air cooled, Light intensity controller
  • Filter colour: Green (Yellow - option)
  • Power Supply: AC Single Phase 230V, 50Hz
  • Standard Accessories: Supplied complete as above, with standard multilayer coated objective, spare bulb, a vinyl cover and operating instructions manual.

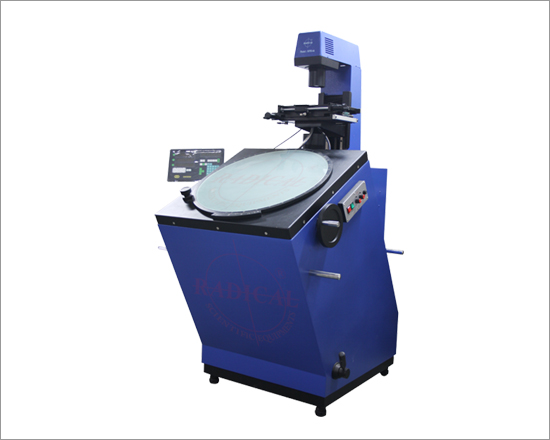

Profile Projector RPP-60

Code: BIPP0014

  • Screen Diameter: 600mm.
  • Work Stage: 350mm x 200mm.
  • Stage Travel X-Y Axis: 200mm x 100mm.
  • Focussing Range: 125mm.
  • Protecor Screen: 360° Rotation with 2 minutes vernier resolution
  • Standard Magnification: 10X
  • Optional Magnification: 20X, 25X, 50X & 100X
  • Magnification Accuracy: ± 0.05% on contour and ± 0.1% on surface
  • Lens Mounting: 3 Turret type for safety and easy use.
  • Table Top Area: With T-slot (Helixable for 15o either side).
  • Resolution: 0.001mm.
  • Measuring System: With Mechanical Micrometer 0-25mm / Digital Read Out/ Data Processor (Selectable), (Optional PC based Software)
  • Illumination: 24V, 150W Halogen, Forced Air Cooled, Light Intensity controller for variable backgrounds.
  • Filter Color: Green
  • Power Supply: AC Single Phase 230V, 50Hz.
  • Standard Accessories: Supplied complete as above, with standard multilayer coated objective, spare bulb, a vinyl cover and operating instructions manual.

Profile Projector RPP-150

Code: BIPP0017

A dual purpose instrument having halogen projection bulb 12Volt / 100 Watt workable on 220Volt AC. Equipped with an efficient cooling fan inside, 150mm diameter built-in fine grain glass screen, which is removable to take image on the wall or screen giving a screen magnification of 50x. Cross Travel Stage size 125x125 mm.
Table Travel upto 25 mm, Micro-Head Standard 0-25mm, least count 0.01 mm. Rotary Measuring Stage Glass 62mm. Vertical focussing by rock and pinion. The light source with halogen lamp offers increased contrast, extended life span and improved edge resolution. Lamp is cooled by a silent cooling fan. Light intensity control system allows different intensities as per requirement. Supplied complete with Vinyl cover in card board box.

Profile Projector RPP-250

Code: BIPP0020

Compact light weight Table Top with easy operations. 250mm diameter screen with 90° cross line and chart holders. Screen is graduated to 360° with vernier reading 6 minutes. Projection Light Source with 24V / 150W Halogen Lamp. Double Oblique Light Source for Surface Illumination.
Two adjustable dichroic reflector lamps 12V / 100W each. Focussing can be adjusted manually by hand knob. High Quality objective lenses. Optical distortion below 0.15%. Standard magnifications : 10x, Optional : 20x and 50x. Cross Travel Stage size 125x125 mm. Table Travel upto 35x35 mm (with the use of Gauge Blocks) Micro-Head Standard 0-25mm, least count 0.01 mm.

Projection Capacity
Contour Illumination Surface Illumination
Magnification 10x 20x 50x 10x 20x 50x
View Field Diameter 25 12.5 5 25 12.5 5
Working Distance 60 28 12 60 28 12

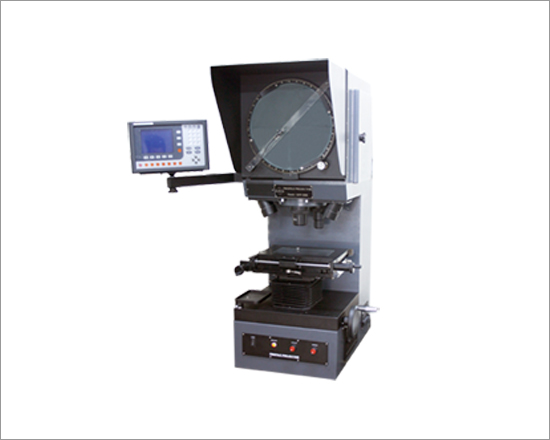

Profile Projector RPP-3000

Code: BIPP0023

Compact light weight Table top with easy operations. 300mm diameter screen with 90° cross line and chart holders. Screen is graduated to 360° with vernier reading 6 minutes. Projection Light Source with 24V / 150W Halogen Lamp. Double Oblique Light source for Surface Illumination. Two adjustable dichroic reflector lamps 12V / 100W each. Focussing can be adjusted manually by hand wheel. High Quality objective lenses. Optical distortion below 0.15%.
Standard magnifications : 10x, Optional : 20x, 50x and 100x. Measurements available through Manual or Digital Micrometers. Optional Work Tables for Micrometer Heads and for linear scales. Cooling by built-in noiseless and vibration free fan. Available in 110V or 220V through low voltage transformers. Supplied complete with operating instruction manual.
Optional Cabinet base metal stand.

Projection Capacity
Contour Illumination Surface Illumination
Magnification 10x 20x 50x 100x 10x 20x 50x 100x
View Field Diameter 30 15 6 3 30 15 6 3
Working Distance 65 32 12 5 65 32 12 5

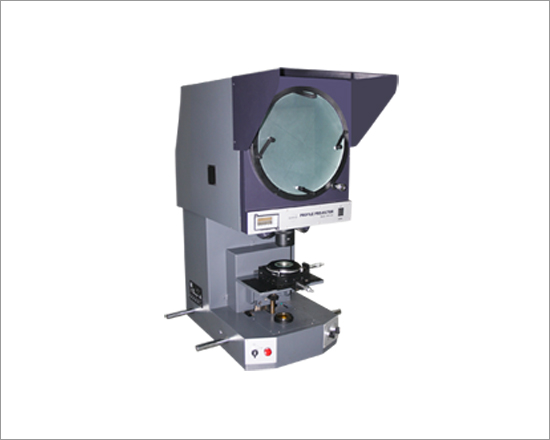

Profile Projector RPP-350

Code: BIPP0026

Compact light weight Table Top with easy operations. 360mm dia. screen with 90° cross line & chart holders. Projection Light Source with 24V/150W Halogen Lamp. Double Oblique Light Source for Surface Illumination. Two adjustable dichroic reflector lamps 12V / 100W each. Motorised Focussing with 60mm focusing range. High Quality objective lenses. Optical distortion below 0.15%.
Standard magnification : 10x, Optional : 10x, 20x, 50x and 100x. High Quality European made objective lenses, Optical distortion below 0.1%. Optional Work Tables for Micrometer Heads & for linear scales with Digital Readout. Cooling by built-in noiseless and vibration free fan. Available in 110V & 220V through low voltage transformers.

Projection Capacity
Contour Illumination Surface Illumination
Magnification 10x 20x 50x 100x 10x 20x 50x 100x
View Field Diameter 36 18 7.2 3.6 36 18 7.2 3.6
Working Distance 115 95 46 35 115 95 46 35

Profile Projector RPP-400

Code: BIPP0029

Compact light weight Table Top with easy operations. Available in 3 dia. 400mm, 500mm, 600mm. screen with 90° cross line & chart holders. Projection Light Source with 24V/150W Halogen Lamp. Double Oblique Light Source for Surface Illumination. Two adjustable dichroic reflector lamps 12V / 100W each. Motorised Focussing with 60mm focusing range. High Quality objective lenses. Optical distortion below 0.15%.
Standard magnification : 10x, Optional : 20x, 50x and 100x. High Quality European made objective lenses, Optical distortion below 0.1%. Optional Work Tables for Micrometer Heads & for linear scales with Digital Readout. Cooling by built-in noiseless and vibration free fan. Available in 110V & 220V through low voltage transformers.

Projection Capacity
Contour Illumination Surface Illumination
Magnification 10x 20x 50x 100x 10x 20x 50x 100x
View Field Diameter 40 20 8 4 10 20 8 4

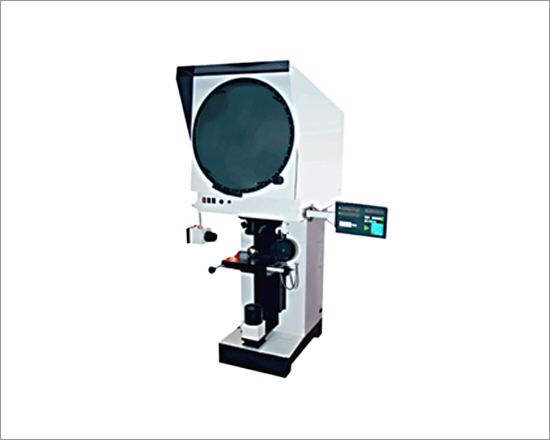

Profile Projector RPP-500V

Code: BIPP0032

  • Screen Diameter: 500mm
  • Work Stage: 350 x 200mm
  • Stage Travel X-Y axis: 150 x 100mm
  • Focussing Range: 125mm
  • Magnification Standard: 10x
  • Magnification Optional: 20x, 25x, 50x, 100x
  • Protactor Screen: 360° Rotation with 2 minutes vernier resolution
  • Magnification Accuracy: ± 0.05% on contour and ± 0.1% on surface
  • Lens Mounting: 3 turret type for safety and easy use.
  • Resolution: 0.001mm
  • Measuring System: With Mechanical micrometer 0-25mm / DRO / Data Processor (selectable), (optional PC based software)
  • Illumination: 24V, 150W Halogen, Forced Air cooled, Light intensity controller
  • Filter colour: Green (Yellow - option)
  • Power Supply: AC Single Phase 230V, 50Hz
  • Standard Accessories: Projection lamps 2 nos, Operating manual, Calibrations Certificate etc.

Profile Projector RPH-400

Code: BIPP0035

  • Screen Diameter: 400mm
  • Work Stage: 500 x 170mm
  • Stage Travel X-Y axis: 200 x 150mm
  • Focussing Range: 150mm
  • Protactor Screen: 360° Rotation with 2 minutes vernier resolution
  • Magnification Standard: 10x
  • Magnification Optional: 20x, 25x, 50x, 100x
  • Magnification Accuracy: ± 0.05% on contour and ± 0.1% on surface
  • Lens Mounting: 3 turret type for safety and easy use.
  • Table Top Area: With T-slots (Helixable for 15" either sides)
  • Resolution: 0.001mm
  • Measuring System: By X-Y digital read out (optional PC based Software)
  • Illumination: 24V, 150W Halogen, Forced Air cooled,
  • Light intensity controller for variable backgrounds
  • Filter colour: Green (Yellow - option)
  • Power Supply: AC Single Phase 230V, 50Hz
  • Standard Accessories: V-Block set of 2 nos. with centers, Projection lamps 2 nos, Operating manual, Calibrations Certificate etc.

Profile Projector RPH-600

Code: BIPP0038

  • Screen Diameter: 600mm.
  • Work Stage: 600mm x 200mm.
  • Stage Travel X-Y Axis: 200mm x 150mm.
  • Focussing Range: 150mm.
  • Protecor Screen: 360° Rotation with 2 minutes vernier resolution
  • Standard Magnification: 10X
  • Optional Magnification: 20X, 25X, 50X & 100X
  • Magnification Accuracy: ± 0.05% on contour and ± 0.1% on surface
  • Lens Mounting: 3 Turret type for safety and easy use.
  • Table Top Area: With T-slot (Helixable for 15o either side).
  • Resolution: 0.001mm.
  • Measuring System: X-Y Digital Read Out (Optional PC based Software)
  • Illumination: 24V, 150W Halogen, Forced Air Cooled,
  • Light Intensity controller for variable backgrounds.
  • Filter Color: Green (Yellow - Optional)
  • Power Supply: AC Single Phase 230V, 50Hz
  • Standard Accessories:V-Block set of 2 nos. with centers, Projection lamps 2 nos, Operating manual, Calibrations Certificate etc.
