TDS Meter Photocolorimeter & Flame Photometer


Educational Equipments Manufacturer, Exporters & Suppliers - School Educational Equipments Manufacturers & Exporters of Educational Equipments for Lab. Science Lab Products, Teaching Aids, Classroom Instruments, Educational Laboratory

Flame Photometer, Digital, Single Channel

  • Simple & Easy to Operate.
  • Narrow Band Interference Filters.

Flame Photometer Unit

  • No. of Filters: Na & K (Ca & Li are optional. Only available if specified at an extra cost)
  • Range: Na: 0-100 ppm K: 0-100 ppm Ca: 20-100 ppm (optional) Li: 10-100 ppm (optional)
  • Sensitivity: Na: 5 ppm K: 5 ppm Ca: 10 ppm (optional) Li: 10 ppm (optional)
  • Display: 2 ½ digit bright LED Display
  • Accuracy: + 2% upto 40 ppm + 5% above 40 ppm
  • Repeatability: +2 Count
  • Detector: Silicon Photodiode
  • Filters: Narrow band interference glass filters
  • Nebulizer: Black Bakelite, axial flow type
  • Flame System: LPG and dry oil free air
  • Warm-up time: 10 minutes
  • Power: 230V + 10% AC 50Hz
  • Weight: 6.5kg (approx.)

Compressor Unit

  • Air Supply: By oil free mini compressor unit with pressure regular
  • Combustion: LPG controlled by precision regulator
  • Power: 230V +10% AC 50Hz
  • Weight: 9Kg (approx.)

Accessories:

  • Instrument with Na & K filters
  • Instruction Manual
  • Dustcover
  • Chimney
  • Air Tubing
  • Operation Manual

Catalog No. Particulars
SLEP1600 Flame Photometer, Digital, Single Channel

Flame Photometer, Digital, Dual Channel

  • Simple & Easy to Operate.
  • Narrow Band Interference Filters.
  • Dual Channel Display
  • Na & K at single aspiration.

Flame Photometer Unit

  • No. of Filters: Na & K (Ca & Li are optional. Only available if specified at an extra cost)
  • Range: Na: 0-200 meq/litre K: 0-100 meq/litre Ca: 0-2 meq/litre (optional) Li: 0-10 meq/litre (optional)
  • Display: Dual 2½ digit bright LED display
  • Accuracy: ± 2% upto 100 meq/litre ± 5% above 100 meq/litre
  • Repeatability: +2 Count
  • Detector: Silicon Photodiode
  • Filters: Narrow band interference glass filters
  • Nebulizer: Black Bakelite, axial flow type
  • Flame System: LPG and dry oil free air
  • Warm-up time: 10 minutes
  • Power: 230V + 10% AC 50Hz
  • Weight: 7.5kg (approx.)

Compressor Unit

  • Air Supply: By oil free mini compressor unit with pressure regular
  • Combustion: LPG controlled by precision regulator
  • Power: 230V +10% AC 50Hz
  • Size (LxBxH): 275x192x240mm
  • Weight: 9Kg (approx.)

Accessories:

  • Instrument with Na & K filters
  • Instruction Manual
  • Dustcover
  • Chimney
  • Air Tubing

Catalog No. Particulars
SLEP1610 Flame Photometer, Digital, Dual Channel

Flame Photometer, Microprocessor Based

  • Single Channel
  • Mixing Chamber designed for stable flame
  • Stainless steel round burner
  • Concentric Non-Corrosive Nebulizer
  • Narrow Band interference Filters
  • 5 digit seven segment bright red LED display

Technical Specification

  • Range: Serum (ppm) Urine (Meq/litre)
    Na: 0.1 to 100 0.435-435 0.87-870
    K: 0.1 to 100 0.256 - 256 0.512-512
    Ca: 15 to 100 ------ ------
    Li: 0.5 to 100 0.724-144.8 ------
  • Accuracy: ± 1 % up to 40 ppm ± 2 % above 40 ppm
  • Readout: 5 digit seven segment bright red LED display
  • Flame System: LPG & dry oil free air
  • Detector: Photodiode
  • Calibration: 3 point calibration
  • Power: 230V ± 10% AC,50Hz
  • Weight: 8 Kg (approx.)
  • Air Supply: By oil free mini compressor unit with pressure regulator
  • Combustion Gas: LPG
  • Atomizer: Axial flow type
  • Burner: Stainless Steel

Standard Accessories

  • Sample Holder (5 Nos)
  • Dust Cover
  • Main Lead
  • Chimney
  • Capillary tubes(3 Nos)
  • Air and Gas Tubing along with End Clamps (1 Set)
  • Cleaning Wire
  • Instruction Manual

Catalog No. Particulars
SLEP1620 Flame Photometer, Microprocessor Based

Photocolorimeter, 8 Filters, Microprocessor Based,Table Model

  • Highly accurate & stable.
  • Range 400 to 700nm.
  • 16x2 line backlit alphanumeric LCD display.
  • Printer attachment facility
  • Storage for 100 samples
  • Soft touch membrane keys

Technical Specification

  • Wave Length Range: 400 to 700 nm
  • Resolution: 1%T, 0.01Abs., 0.01 Conc., 0.01 K Factor
  • % Transmission: 0-100% T
  • Absorbance: 0-1.99A
  • Concentration: 0-19999
  • K Factor: 1-19999
  • Display: 16x2 line alphanumeric LCD display with backlit
  • Keyboard: 8 Keys, soft touch membrane keys
  • Data Storage: Up to 100 Samples
  • Light Source: 6.8V, 0.3 Amp. Tungsten lamp
  • Sample System: 10mm path length matched glass test tubes
  • Filters: 400, 420, 480, 500, 520, 540, 620, 680nm
  • Printer Interface: Centronics parallel Printer interface for any dot matrix printer
  • RS232 Interface: Available (On Request)
  • Weight: 2.5 Kg (approx.)
  • Power Supply: 230V AC ±10%, 50Hz. with in-built Stabilizer

Accessories

  • Matched Test Tube Set of 5
  • Operation Manual
  • Dust cover.
  • Manual.

Catalog No. Particulars
SLEP1630 Photocolorimeter, 8 Filters, Microprocessor Based,Table Model

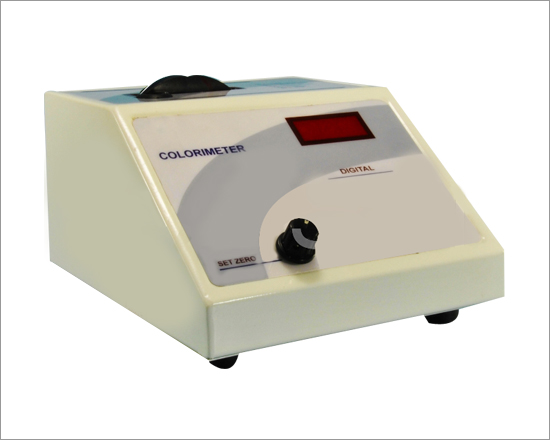

Photocolorimeter, 8 Filters, Digital, Table Model

  • 1 ml solution measurements.
  • Standard glass filters.
  • Highly stable & accurate.

Technical Specification

  • Std. Glass Filter: 8
  • Mini Volume: 1ml
  • Display: 2½ Digit LED
  • Range: 400-700 nm
  • Output: OD (0 to 1.99)
  • Resolution: OD: 0.01
  • Accuracy: 0.5% FSI
  • Detector: Selenium photocell
  • Light Source: 6.8V, 300mA
  • Power: 230V± 10% and in-built battery
  • Filters: 400, 420, 480, 500, 520, 540, 620, 680 nm

Accessories

  • Set of 5 test tube.
  • Spare lamp.
  • Dust cover.
  • Manual.

Catalog No. Particulars
SLEP1640 Photocolorimeter, 8 Filters, Digital, Table Model

Photocolorimeter, 5 Filters, Digital, Table Model

  • 1 ml solution measurements.
  • Standard glass filters.
  • Highly stable & accurate.

Technical Specification

  • Std. Glass Filter: 5
  • Mini Volume: 1ml
  • Display: 2½ Digit LED
  • Range: 400-700 nm
  • Output: OD (0 to 1.99)
  • Resolution: OD: 0.01
  • Accuracy: 0.5% FSI
  • Detector: Selenium photocell
  • Light Source: 6.8V, 300mA
  • Power: 230V± 10% and in-built battery
  • Filters: 420, 480, 540, 620, 680 nm

Accessories

  • Set of 5 test tube.
  • Spare lamp.
  • Dust cover.
  • Manual.

Catalog No. Particulars
SLEP1650 Photocolorimeter, 5 Filters, Digital, Table Model

Photocolorimeter, Auto Zero, Digital, Table Model

  • Display both absorbance & %T models.
  • Range 400 to 700nm.
  • Fast & accurate operations.
  • Automatic zero calibration.
  • 1ml. solution measurement.
  • Standard german glass filters.

Technical Specification

  • Std. Glass Filter: 8
  • Mini Volume: 1ml
  • Display: 3 Digit, Bright Red 7 Segment LED
  • Range: 400-700 nm
  • Output: (0 to 1.99), %T: 0 to 199
  • Resolution: OD : 0.01, %T : 1%
  • Accuracy: 0.5% FSI
  • Detector: Selenium photocell
  • Light Source: 6.8V, 300mA
  • Power: 230V ± 10%, 50 Hz. AC
  • Dimensions (l x b x h): 220x180x125mm (approx.)
  • Weight: 2 Kg (approx.)

Accessories

  • Set of 5 test tube.
  • Spare lamp.
  • Dust cover.
  • Manual.

Catalog No. Particulars
SLEP1660 Auto Zero, Photocolorimeter, Digital, Table Model

TDS Meter, Digital, Pocket Model

Innovated rich oxygen air-acetylene flame analysis technique

Type A

  • Range: 10-1900 ppm
  • Resolution: 10 ppm
  • Typical EMC Deviation: ± 2% Full Scale
  • Accuracy: ± 2% Full Scale

Type B

  • Range: 100-10000 ppm
  • Resolution: 100 ppm
  • Typical EMC Deviation: ± 2% Full Scale
  • Accuracy: ± 2% Full Scale

Catalog No. Particulars
SLEP1670 TDS Meter, Digital, Pocket Model Type A
SLEP1671 TDS Meter, Digital, Pocket Model Type B

TDS Meter, Digital, A.T.C. , Waterproof, Pocket Model

  • Range TDS: 0-19990 ppm
  • Range Temperature: 0°C-55°C
  • Resolution TDS: 10 ppm
  • Resolution Temperature: 0.1°C / 0.1°F
  • Accuracy TDS: + 2% Full Scale
  • Accuracy Temperature: + 1°C

With Automatic Temperature Compensation

Catalog No. Particulars
SLEP1681 TDS Meter, Digital, A.T.C. , Waterproof, Pocket Model

TDS Meter, Digital, Portable

Technical Specifications

  • Display: 3½ Digit LCD
  • Range: 2 Ranges 0-2000 ppm 0-20 ppt
  • Temperature Compensation: NA
  • Cell Constraint Adjustment: Pre-adjustable
  • Conductivity Cell: Platinum DIP
  • Measuring Frequency: 1000 Hz
  • Accuracy: ±1% FSI
  • Power: 1 x 9V Battery
  • Dimensions: 85 x 28 x 165 mm
  • Weight: 0.8 kg (approx.)

Accessories

  • TDS Cell
  • Operation Manual
  • Dust Cover

Catalog No. Particulars
SLEP1691 TDS Meter, Digital, Portable

TDS Meter, Digital, Table Model

  • Highly Stable and Accurate
  • Cell Constant Adjustment Facility
  • Temperature Coefficient Correction facility

Technical Specifications

  • Display: 3½ Digit LCD
  • Range: 5 Ranges
  • 0-1000 ppt Mohs/cm
  • Temperature Compensation: Manual 0-50°C
  • Cell Constraint Adjustment: Adjustable
  • Conductivity Cell: Platinum DIP
  • Measuring Frequency: 1000 Hz
  • Accuracy: ±1% FSI
  • Power: 230V+10%
  • Dimensions: 76x275x175 mm
  • Weight: 2 kg (approx.)

Accessories

  • TDS Cell
  • Operation Manual
  • Dust Cover

Catalog No. Particulars
SLEP1701 TDS Meter, Digital, Table Model
