Laboratory Rectangular Heating Plate with Cast Iron Top
This is very useful for continuous heating upto 350°C. The body is made of specially designed with perforated P.C.R.C. sheet painted with attractive stove enamel.
Item Code |
Size |
Power |
Type |
SE810 |
25 x 30 x 18 cm (10"x12"x7") |
1.2 k.w. |
With Energy Regulator |
SE813 |
25 x 40 x 18 cm. (10"x16"x7") |
1.5 k.w. |
With Energy Regulator |
SE816 |
30 x 45 x 18 cm. (12"x18"x7") |
2.0 k.w. |
With Energy Regulator |
SE820 |
25 x 30 x 18 cm (10"x12"x7") |
1.2 k.w. |
With Thermostat upto 300°C |
SE823 |
25 x 40 x 18 cm. (10"x16"x7") |
1.5 k.w. |
With Thermostat upto 300°C |
SE826 |
30 x 45 x 18 cm. (12"x18"x7") |
2.0 k.w |
With Thermostat upto 300°C |
SE830 |
25 x 30 x 18 cm (10"x12"x7") |
1.2 k.w. |
With Digital Controller PID Based |
SE833 |
25 x 40 x 18 cm. (10"x16"x7") |
1.5 k.w. |
With Digital Controller PID Based |
SE836 |
30 x 45 x 18 cm. (12"x18"x7") |
2.0 k.w. |
With Digital Controller PID Based |
NOTE : Accuracy with Digital Controller cum Indicator will be 2ºC ± or Better. |
Laboratory Round Heating Plate
The Body is made of P.C.R.C. sheet painted with attractive stove enamel. The top of plate is 20.5 cm dia. fitted with an indicating lamp. This type of heating plate is very useful for fast heating upto 500°C. To work on 220/230 Volts A.C.
Item Code |
Size |
Power |
SE811 |
20.5 cm. (8") |
1.5 k.w. with Energy Regulator |
SE821 |
20.5 cm. (8") |
1.5 k.w. With Digital Controller PID Based |
NOTE : Accuracy with Digital Controller cum Indicator will be 2ºC ± or Better. |
Hot Plate, Round Type, Economy
A round cast iron plate is fixed on a thick mild steel body. Body is convered with layer of paint. This provide a highly screech & heat resistant surface for long lasting attractive finish. Temperature is controlled by a three level heat control switch. Rating 1.5 KW, 230 volts AC.
Catalog No. |
Particulars |
SLEP0202a |
Hot Plate, Round Type, Economy, 8" |
SLEP0202b |
Hot Plate, Round Type, Economy, 12" |

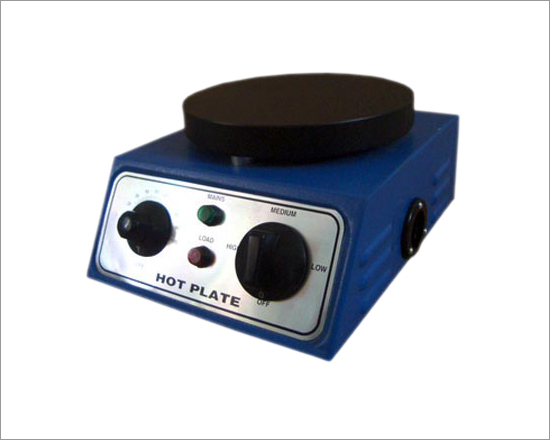

Hot Plate, Round Type, Thermostatic
A round cast iron plate is fixed on a thick mild steel body. Body is convered with layer of paint. This provide a highly screech & heat resistant surface for long lasting attractive finish. Temperature is controlled by an energy regulator with continuous type heat control. Rating 1.5 KW, 230 volts AC.
Catalog No. |
Particulars |
SLEP0205a |
Hot Plate, Round Type, Thermostatic, 8" |
SLEP0205b |
Hot Plate, Round Type, Thermostatic, 12" |

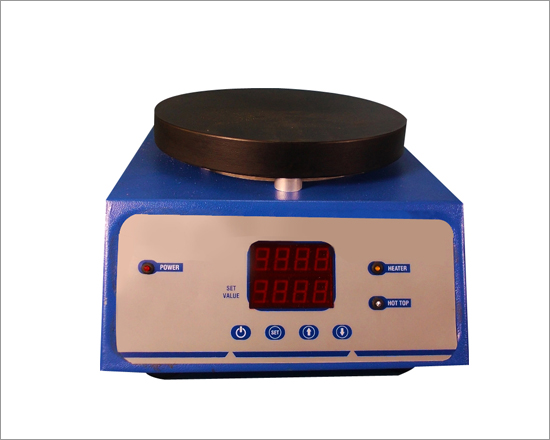

Hot Plate, Round Type, Digital
A round cast iron plate is fixed on a thick mild steel body. Body is covered with layer of paint. This provide a highly screech & heat resistant surface for long lasting attractive finish. Temperature is controlled by a digital temperature controller and indicator. Rating 1.5 KW, 230 volts AC
Catalog No. |
Particulars |
SLEP0208a |
Hot Plate, Round Type, Digital, 8" |
SLEP0208b |
Hot Plate, Round Type, Digital, 12" |

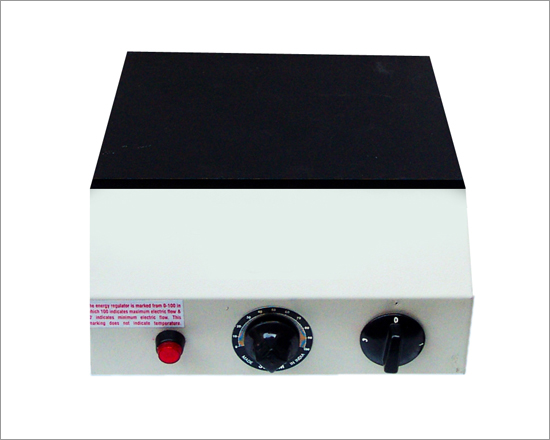

Hot Plate, Rectangular
It has temperature range upto 350 degree celsius. Suitable for general purpose laboratory heating. It has a rectangular cast iron plate fixed on a thick mild steel body. Heating elements made of high temperature kanthal wire are fixed beneath the plate. Body is covered with thick layer of epoxy polyster paint to provide a highly screech & heat resistant surface for long lasting attractive finish. Temperature is controlled by an energy regulator with continuous type heat control.
Catalog No. |
Particulars |
SLEP0214a |
Hot Plate, Rectangular, 250x300x150 mm, 1 KW |
SLEP0214b |
Hot Plate, Rectangular, 250x400x150 mm, 1 KW |
SLEP0214c |
Hot Plate, Rectangular, 300x450x150 mm, 2 KW |
SLEP0214d |
Hot Plate, Rectangular, 450x600x150 mm, 3 KW |
Hot Plate, Rectangular, Digital
It has temperature range upto 350 degree celsius. Suitable for general purpose laboratory heating. It has a rectangular cast iron plate fixed on a thick mild steel body. Heating elements made of high temperature kanthal wire are fixed beneath the plate. Body is covered with thick layer of epoxy polyster paint to provide a highly screech & heat resistant surface for long lasting attractive finish. Temperature is controlled by digital controller cum indicator.
Catalog No. |
Particulars |
SLEP0220a |
Hot Plate, Rectangular, Digital, 250x300x150 mm, 1 KW |
SLEP0220b |
Hot Plate, Rectangular, Digital, 250x400x150 mm, 1 KW |
SLEP0220c |
Hot Plate, Rectangular, Digital, 300x450x150 mm, 2 KW |
SLEP0220d |
Hot Plate, Rectangular, Digital, 450x600x150 mm, 3 KW |

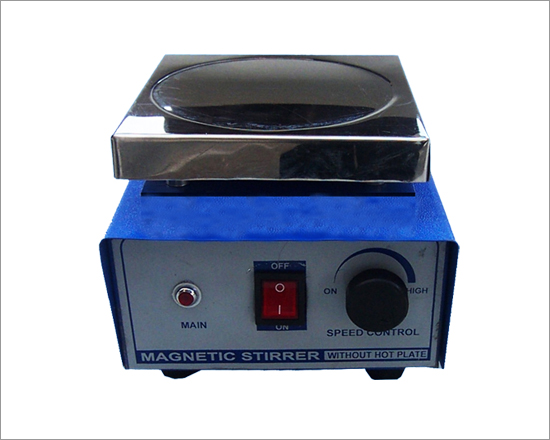

Magnetic Stirrer without Hot Plate
Maximum speed 1200 RPM. Suitable for stirring all volumes, supplied with a teflon coated magnetic stirring bar.
Catalog No. |
Particulars |
SLEP0241a |
Magnetic Stirrer without Hot Plate, Volume 2 litre |
SLEP0241b |
Magnetic Stirrer without Hot Plate, Volume 5 litre |

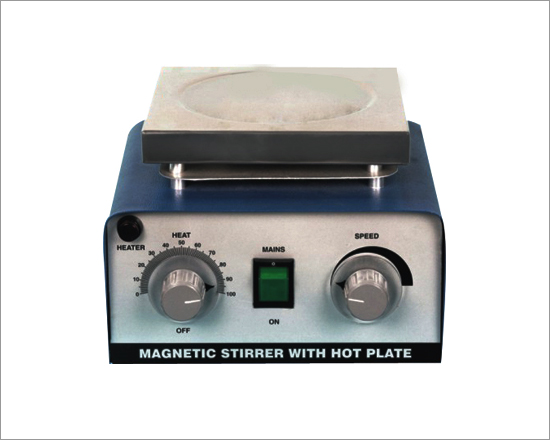

Magnetic Stirrer with Hot Plate
Suitable for stirring all volumes. Maximum speed 1200 rpm with variable speed control, supplied with a teflon coated magnetic stirring bar. Heater of 300 watts with temperature regulator.
Catalog No. |
Particulars |
SLEP0244a |
Magnetic Stirrer with Hot Plate, Volume 2 litre |
SLEP0244b |
Magnetic Stirrer with Hot Plate, Volume 5 litre |

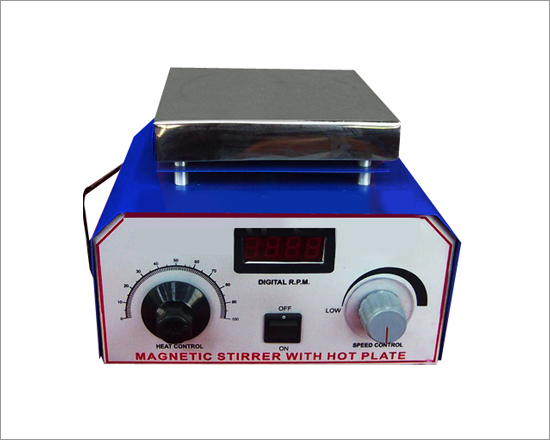

Magnetic Stirrer with Hot Plate, Digital RPM
Suitable for stirring all volumes. Maximum speed 1200 rpm with variable speed control, supplied with a teflon coated magnetic stirring bar. Heater of 300 watts with temperature regulator. With Digital RPM indicator.
Catalog No. |
Particulars |
SLEP0246a |
Magnetic Stirrer with Hot Plate, Digital RPM |
Magnetic Stirrer with Hot Plate, Digital RPM and Temperature
Suitable for stirring all volumes. Maximum speed 1200 rpm with variable speed control, supplied with a teflon coated magnetic stirring bar. Heater of 300 watts with temperature regulator. With Digital Temperature and RPM indicator.
Catalog No. |
Particulars |
SLEP0248a |
Magnetic Stirrer with Hot Plate, Digital RPM & Temperature |

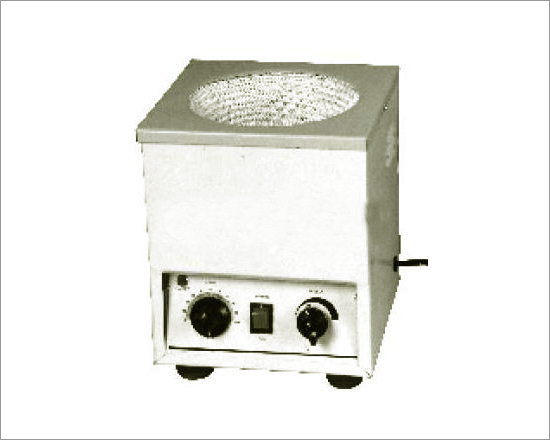

Rota Mantle
It is a combined mechanism. In this unit magnetic stirrer is fixed beneath the heating mantle.
Catalog No. |
Particulars |
SLEP0260a |
Rota Mantle, Flask Capacity 500 ml., 150 Watts, Speed 1200 RPM |
SLEP0260b |
Rota Mantle, Flask Capacity 1000 ml., 250 Watts, Speed 1200 RPM |
SLEP0260c |
Rota Mantle, Flask Capacity 2000 ml., 400 Watts, Speed 1200 RPM |

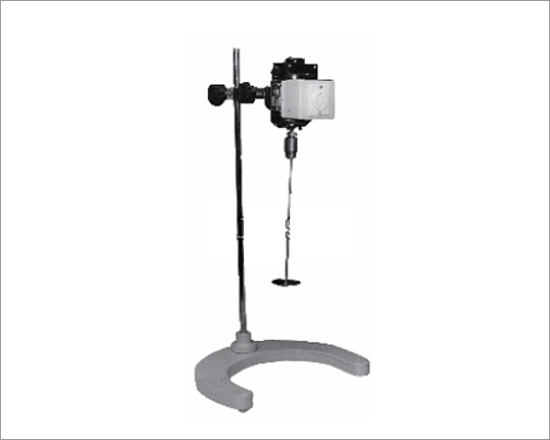

Laboratory Stirrer, Economy
With noise less universal motor, maximum speed 4000 rpm with electronic variable speed regulator between 200 to 4000 rpm. The stirrer shaft is of stainless steel with 3 bladed propeller having 37 mm. sweep, shaft and stirrer coupled by means of simple bush coupling with grub screw. Stirrer is mounted on a adjustable heavy stand.
Catalog No. |
Particulars |
SLEP0250a |
Laboratory Stirrer, Economy |

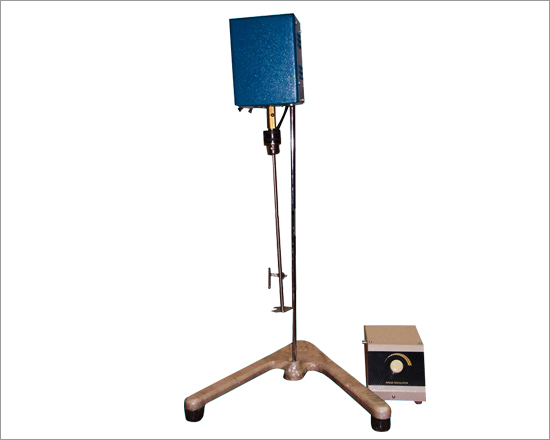

Laboratory Stirrer, High Torque, Geared Motor
Safe and a versatile unit. A very high torque is developed at a relatively low operating speed. It is suitable for affectively stirring high viscosity fluids and pastes. Geared Motor 1/20 H.P., 4000 rpm, continuous type motor is coupled to speed reducing gear unit giving output speed of 150 rpm at 220 volts AC/DC. Stirrer Shaft 8 mm. dia., 350 mm long shaft fitted with 4 bladed turbine impeller made of stainless steel. Speed Control Variable speed controller, mounted in a metal housing. Digital Speed controller also available. Stirring Capacity 2 to 3 kgs. of thick materials.
Catalog No. |
Particulars |
SLEP0253a |
Laboratory Stirrer, High Torque, Geared Motor |
SLEP0253b |
Laboratory Stirrer, High Torque, Geared Motor, Digital RPM Indicator & Controller From 200 To 2500 RPM |
