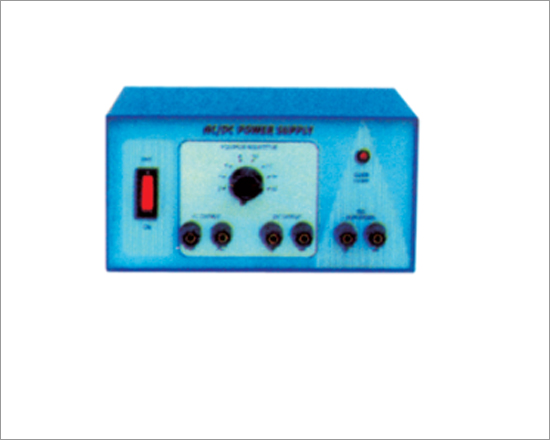

Special Purpose Power Supply
Code: PHEE0121

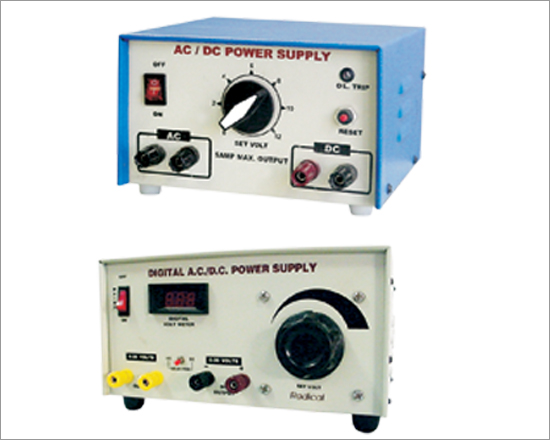

Student AC/DC Power Supplies with over load & short circuit protection
- AC/DC Power Supply 2-12V/2 Amps in steps of 2 Volts
- AC/DC Power Supply 2-12V/3 Amps in steps of 2 Volts
- AC/DC Power Supply 2-12V/5 Amps in steps of 2 Volts
- AC/DC Power Supply 2-16V/3 Amps in steps of 2 Volts
- AC/DC Power Supply 2-24V/3 Amps in steps of 2 Volts
- AC/DC Power Supply 2-24V/5 Amps in steps of 2 Volts
Battery Charges
- Battery Charger 2-12 VDC/2 Amps
- Battery Charger 2-12 VDC/3 Amps
- Battery Charger 2-12 VDC/5 Amps
Automatic Battery Charges
- Automatic Battery Charger 6-18 VDC/2 Amps.
- Automatic Battery Charger 6-18 VDC/3 Amps.
Battery Eliminator
- Battery Eliminator 2-6 VDC/ 2 Amps
- Battery Eliminator 2-12 VDC/2 Amps
- Battery Eliminator 2-12 VDC/3 Amps
- Battery Eliminator 2-12 VDC/5 Amps
DC Regulated Battery Eliminator
- DC Regulated Battery Eliminator 2-123 VDC/ 2 Amps
- DC Regulated Battery Eliminator 2-12 VDC/3 Amps
Low Voltage Power Supply AC/DC
Code: PHEE0123
Analog voltage & current readout, robust transformer & highly stablized circuitry.
Power Supply
Code: PHEE0125
The DC regulated power supply is an easy to use, low ripple high regulation precision instrument. Its unique feature is overload protection which makes it a safe power source for testing of electronic equipment. Both voltage and current are precisely regulated with low output ripple. The power supply can be operated in either constant voltage or constant current mode and is protected against overload or short circuit by means of automatic cross over characteristics from C.V. to C.C.. The output voltage and currents can be read on a meter. A switch is provided to select the LOW or HIGH range of current. Maximum voltage is 30 volts.
DC Regulated Power Supply (Single Output)
Code: PHEE0127
- PR 230 (0-30V / 2A), PR 231 (0-30V / 5A)
- High accuracy, high stability
- Overload & short circuit protection
- Allow full scale long time operation
- Voltage and current continuously variable within nominal value
- CC/CV indication
Programmable DC Power Supply (0-36vdc/3amps)
Code: PHEE0129
- High stabilized programmable voltage/current/power outputs
- Menu operation by front keypad and rotary switch
- Large LCD display with backlit
- Output continuously adjustable output
- Maximum current/power output presetable
- Constant current/voltage/power output mode
- Over current, voltage and over power protection
- Memory: Store & recall setup data for different applications
- Series/parallel connections
- Interface to computer
- Safety design
High Voltage Power Supply
Code: PHEE0131
