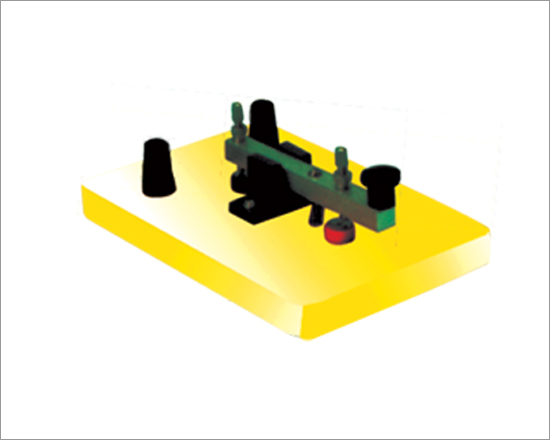

Morse Key
Code: PHEE0047
On rectangular wooden base with two terminals, pivoted contact arm with adjustable spring.

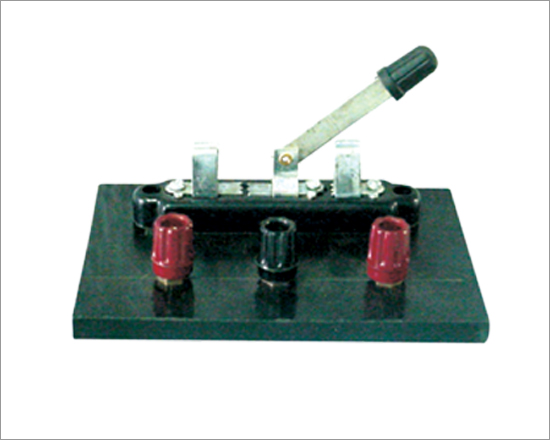

Knife Switch, Single Pole
Code: PHEE0049
Low voltage, single pole double throw, moulded base with plated metal contacts and screw connectors.

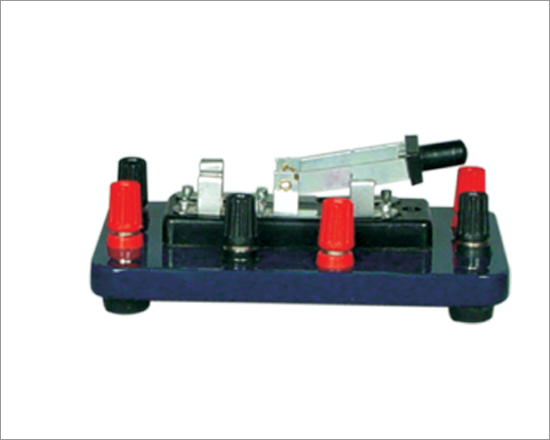

Knife Switch, Double Pole
Code: PHEE0051
Low voltage, double pole double throw, may be used as changeover switch with appropriate connections, moulded base with plated metal contacts and screw connectors.

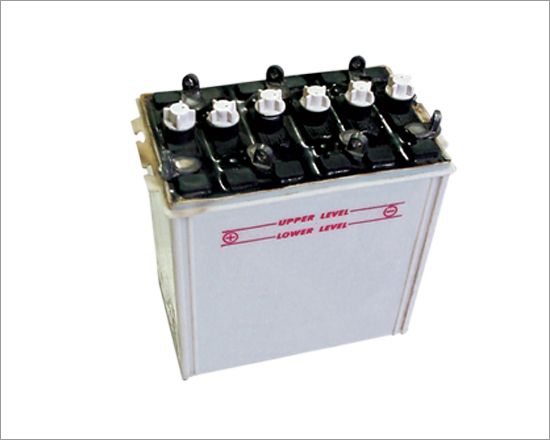

Accumulators
Code: PHEE0053
Multiplate type, fitted with positive and negative plates, for heavy current loads in plastic container.
| Voltage |
Capacity |
| 2 |
45 AH |
| 2 |
60 AH |
| 2 |
75 AH |

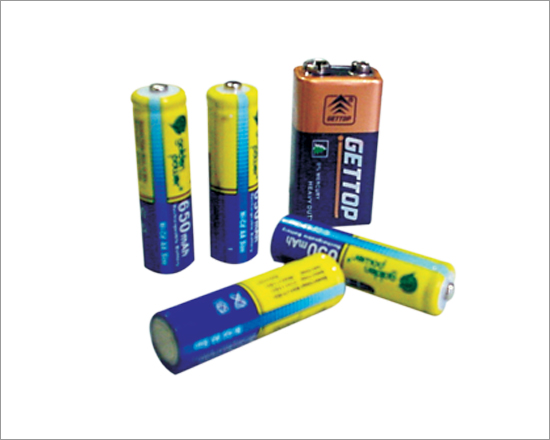

Battery
Code: PHEE0055
Multipurpose, zinc carbon, good quality, leakproof, safe recommended where the current demand are modest.
| Type |
Voltage |
Size |
| R6 (915B, AA) |
1.5 Volt |
Pk of 10 |
| LR6 (AA), Alkaline |
1.5 Volt |
Pk of 2 |
| R03 (AAA) |
1.5 Volt |
Pk of 4 |

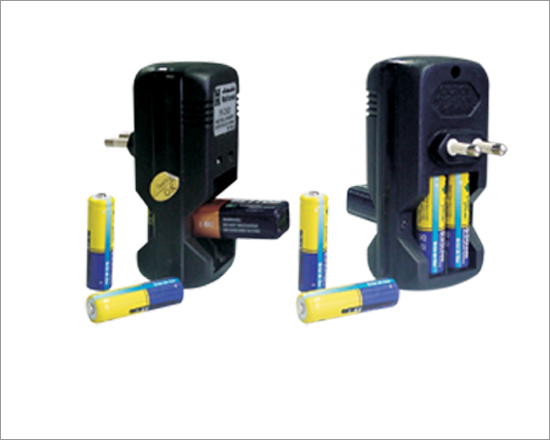

Cell Charger
Code: PHEE0057
Specially designed for charging Ni-Cd 1, 2, 3 or 4 AA batteries at a time of 1.2 volt, 700 milli amps. Operates on 220 volt AC.
Conductivity Apparatus
Code: PHEE0059
The apparatus consists of a fabricated transparent acrylic stand supporting three cells in the form of 50 ml glass beakers. Electrodes are suspended into the cells, each having a low voltage lamp in series to indicate the current flowing. The three cells and lamps, as a group are connected in parallel and provided with a pair of 4 mm sockets for connection to the external supply. The lamps provided will allow operation on a supply of up to 12V D.C. Dimensions are 215mmx155mmx115mm widthxdepthxheight

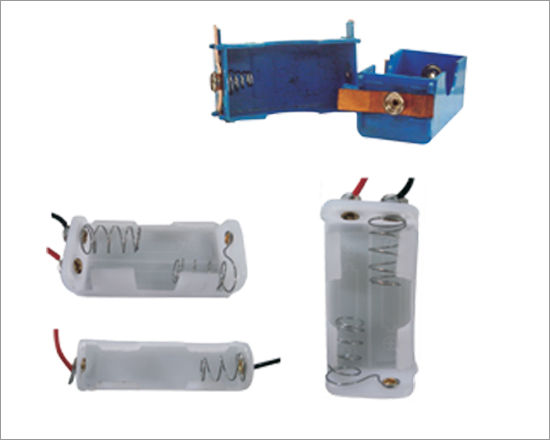

Cell Holder
Code: PHEE0061
Battery Holder stackable accommodate upto 1.5V, held in spring clips 4 mm. sockets for 1.5, 3, 4.5, 6, 0 Volt tappings. Supplied without battery.
Charger
Code: PHEE0063
Fast charging, operates on 220 Volt AC.

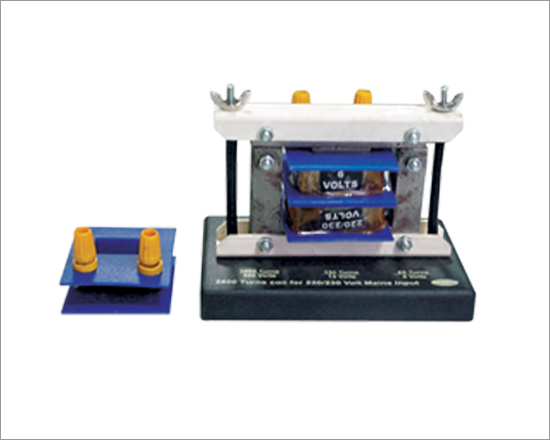

Demonstration Transformer
Code: PHEE0065
With one mains coil 230 to 240 V, 50 Hz, 2400 turns and two interchangeable secondary coils, 65 and 130 turns giving outputs of 6 and 12 V approximately at 2 A maximum. The laminated iron core is in two sections, 'T' and 'U' with butt joints, the stem of the 'T' having a cross section 24 x 24 mm. A simple channel and wing-nut clamping arrangement facilitates quick assembly and interchange of coils. The coils are wound on insulating bobbin, with 2-pin connection for mains and 4 mm sockets for the secondary outputs. The number of turns, voltage and amperage is marked on each coil. The transformer is supplied complete with 2 m of flex and a 2-pin mains connector. Overall dimensions 150x100x130 mm.

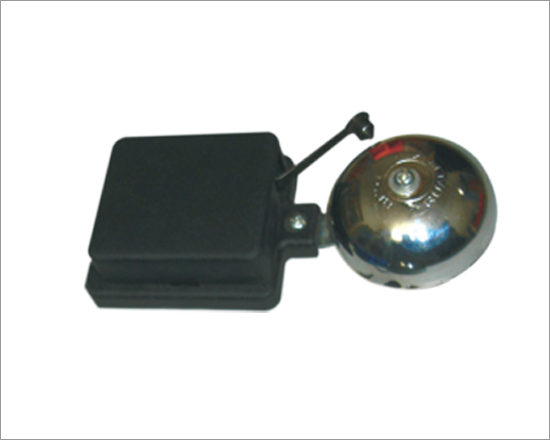

Electric Bell
Code: PHEE0067
With detachable 'snap-on bakelite cover, metal thread terminals, silver contacts. Dome gang dia. 75 mm. approx. For use on 3 to 4.5 V AC/DC supplies.

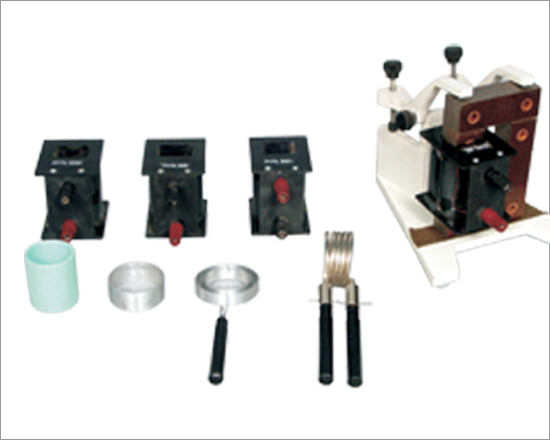

Demountable Transformer
Code: PHEE0069
A large-scale transformer, ideal for classroom. The coils are fitted with intermediary outputs providing many transformation ratios. Moreover, one of them has a mains cable so that you do not required an external power supply unit.
Consisting of :
- I magnetic circuit made up of highly permeable U-shaped metal sheeting, which can be closed via two clamps with tightening screws.
- Section 40x40mm. length 150mm-Height 170mm.
- One coil of 6000turns, 350 ohms, 1 Max: 0.2A. Intermediary 2000 turns output used.
- One coil of 600 turns, I max. 2.5A. Mainly to create the transformer primary. Provided with power supply cable.
- One coil of 1200 turns, 12.5 ohms, I max: 1.25A fitted with intermediary 400 and 800 turns outputs.
- One coil of 72 turns I max: 12A, has intermediary 6,30 54 and 66 turns outputs.
Any other coil of different turns available on request.

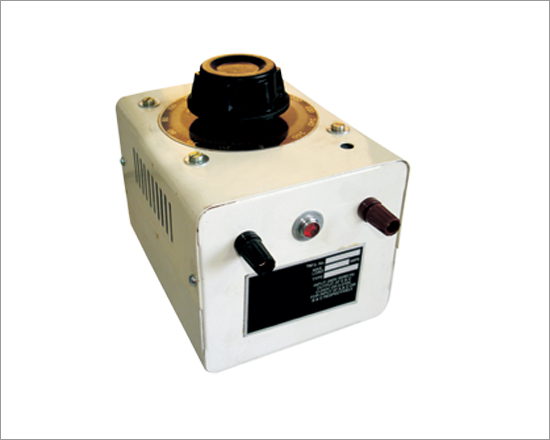

Auto Transformer
Code: PHEE0071
Continuously variable voltage autotransformer, protected type. Comprises a tordially wound transformer with a continuously variable output voltage 0-260 volts A.C. steplessly under full load. Input 220-240 Volts A.C. 50 Hz. In stout metal case mounted on a metal base with two output terminals. Single phase with mains cable.

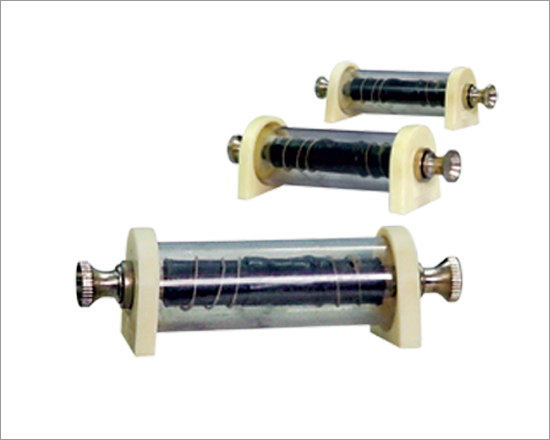

Resistance Coils
Code: PHEE0073
Non-inductively wound with double silk covered constantan coils on plastic rod enclosed in transparent plastic tube with two terminal and values figured. Accuracy + 1%. Individually packed.
- 0.1 to 0.9
- 1 to 10
- 11 to 50
- 51 to 100
- 101 to 500

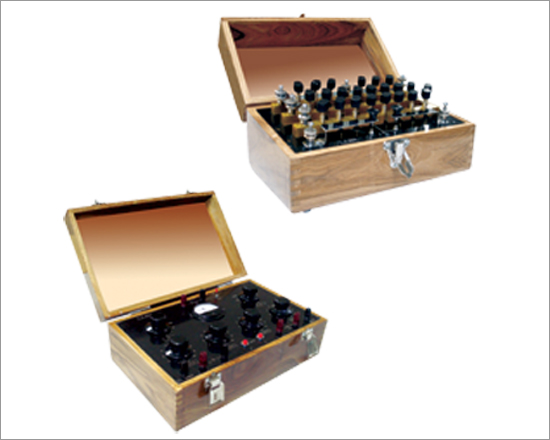

Post Office Box, Plug Type
Code: PHEE0075
Plug type, in polished wooden box with hinged lid and panel to show circuit connections. Coils of constantan wire double silk covered are wound non-inductively. Three pairs of ratio arms are each 10, 100, 1000 ohms and resistance arms contains 16 coils from 1 to 5000 ohms with infinity plug. Total value 11, 110 ohms. Two spring keys having contact for battery and galvanometer fitted. Accuracy of coils 100 to 500 ohms + 0.05% and of the rest coils + 0.1%.
