: are designed with outstanding technological expertise of Narang Medical, which extends the capabilities for education and research work. The quality assurance throughout the manufacturing process ensures demanding performance standards which are matched with exceptional economy in cost. Extra clarity and contrast is provided through our new high performance color corrected infinity optical system. Optical components in the viewing head and objectives are protected with an anti mould system to ensure proper performance in unusually hot and humid environment.
Optical System :
Infinite corrected available in achromatic, semi-plan and plan objectives High Eyepoint eyepieces with an optional WF 10x/22 and built-in diopter adjustment provides easy parfocality adjustment. Siedentopf-type eyepiece tube inclined at comfortable 30 degrees. Interpupillary distance of 55-75mm with dioptric adjustment.
Unique new design and comfort :
Ergonomically designed with comfortable low positioned co-axial coarse & fine focussing controls and an adjustable tension control to maximise individual comfort and convenience. Built-in focus stop allows for rapid image focussing while protecting specimens and objectives. The stand is painted with scratch and chemical resistant epoxy paint.

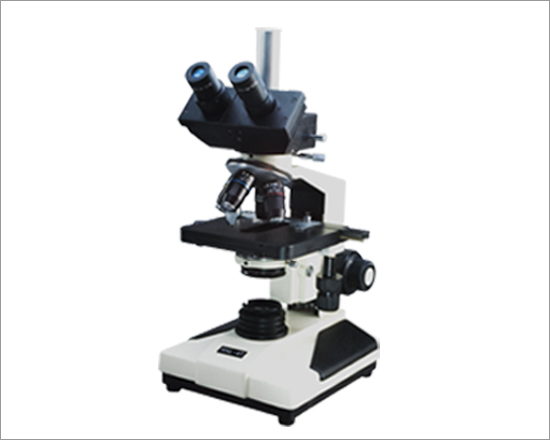

Code: BIMC0093 - Pathological Research Binocular Microscope
- Binocular Head
- WF 10x/20 Eyepiece inward Quintuple Nosepiece
- Infinity corrected achromatic objectives 4x, 10x, 40x, & 100x oil
- Low Coaxial Mechanical Stage 135mmx153mm
- N.A. 1.25 Abbe Condenser
- Collector with field diaphragm
- Koehler illumination, 6Volts 30 Watts
- Blue, Yellow and Green Filters
- Supplied complete in a thermocol box
