Educational Equipments Manufacturer, Exporters & Suppliers - School Educational Equipments Manufacturers & Exporters of Educational Equipments for Lab. Science Lab Products, Teaching Aids, Classroom Instruments, Educational Laboratory
Autoclaves/ Pressure Steam Sterilizers, Aluminum - Seamless (Super Deluxe Series)
The Super Deluxe Series Autoclaves are sturdily constructed in rustproof, heavy gauge aluminum for use in rugged condition. Its a unique vessel that generates steam under pressure and temperature between 120°C to 135°C. On reaching the right temperature the instruments are subject to a saturated steam environment for a pre-specified time which results in safe and guaranteed sterilization. Available in various models and sizes from 6 liters capacity to 63 liters capacity to suit different application. These can be used on electricity as well as on any external heat source such as kerosene stove, gas burner, wood & charcoal.
Features and Benefits:
- All aluminium deep drawn seamless construction.
- Light, compact, portable, easy to use top loading autoclaves.
- Fast 20 min. sterilizing cycle at 121& c.
- Equipped with two stages over pressure protection system incorporating a calibrated continuous bleeding pressure stopcock and pressure release weight valve.
- Extended life gasket & heating element (ISI marked).
- Equipped with heat resistant handles and steam release / control valve.
- For assurance of quality each autoclave is tested to the parameter of successful sterilization.
- Optional TST indicator stickers provide independent verification that the correct combination of temperature, steam & time has been achieved for successful sterilization.
- Pressure Gauge : Colour coded pressure gauge showing internal chamber conditions during the cycle.
- Sterilization zone in green colour is shown from 15 psi to 20 psi (OR 1.034 bar to 1.378 bar) which is equivalent to temperature of 121°c to 127°c. Dial size : 2.5". Dial show measurement in 2 units (i) kg/cm2 (ii) lb/inch2
- Full scale dial of pressure gauge is 0-30 lb/ inch2 or 0-2 kg/ cm2. Caution zone in red colour.
- Inclusive of - inner & outer stand.
- Optional (to be ordered separately) - Inside container / baskets / dressing drums, timer and spares
Item Code |
Capacity (Lt.) including lid |
Power |
Size (dia. x height) |
Type |
AU410 |
11 |
Electric |
220 x 300mm = 9” x 12” |
Mirror/Polished Finish |
AU420 |
15 |
Electric |
300 x 225mm = 12” x 9” |
Mirror/Polished Finish |
AU430 |
21 |
Electric |
300 x 300mm = 12” x 12” |
Mirror/Polished Finish |
AU440 |
24 |
Electric |
300 x 350mm = 12” x 14” |
Mirror/Polished Finish |
AU450 |
28 |
Electric |
300 x 400mm = 12” x 16” |
Mirror/Polished Finish |
AU460 |
38 |
Electric |
350 x 400mm = 14” x 16” |
Mirror/Polished Finish |
AU470 |
39 |
Electric |
300 x 550mm = 12” x 22” |
Mirror/Polished Finish |
Item Code |
Capacity (Lt.) including lid |
Power |
Size (dia. x height) |
Type |
AU411 |
11 |
Non Electric |
220 x 300mm = 9” x 12” |
Mirror/Polished Finish |
AU421 |
15 |
Non-Electric |
300 x 225mm = 12” x 9” |
Mirror/Polished Finish |
AU431 |
21 |
Non-Electric |
300 x 300mm = 12” x 12” |
Mirror/ Polished Finish |
AU441 |
24 |
Non-Electric |
300 x 350mm = 12” x 14” |
Mirror/ Polished Finish |
AU451 |
28 |
Non-Electric |
300 x 400mm = 12” x 16” |
Mirror/Polished Finish |
AU461 |
38 |
Non-Electric |
350 x 400mm = 14” x 16” |
Mirror/Polished Finish |
AU471 |
39 |
Non-Electric |
300 x 550mm = 12” x 22” |
Mirror/Polished Finish |
Item Code |
Capacity (Lt.) including lid |
Power |
Size (dia. x height) |
Type |
AU412 |
11 |
Electric |
220 x 300mm = 9” x 12” |
Epoxy Coated |
AU422 |
15 |
Electric |
300 x 225mm = 12” x 9” |
Epoxy Coated |
AU432 |
21 |
Electric |
300 x 300mm = 12” x 12” |
Epoxy Coated |
AU442 |
24 |
Electric |
300 x 350mm = 12” x 14” |
Epoxy Coated |
AU452 |
28 |
Electric |
300 x 400mm = 12” x 16” |
Epoxy Coated |
AU462 |
38 |
Electric |
350 x 400mm = 14” x 16” |
Epoxy Coated |
AU472 |
39 |
Electric |
300 x 550mm = 12” x 22” |
Epoxy Coated |
*We supply 220V, 50Hz, single phase, electric equipment, unless otherwise specified in your order.
Note: For Autoclave with timer please suffix 'T' to our Autoclaves Codes.
AU402 - Rack Steam Sterilizer, Single Rack
Steam sterilizer, pressure type, single rack, used to sterilize reusable: syringes and needles. Aluminium vessel with high pressure seal suitable for carrying out sterilisation using superheated steam. Steam sterilizer designed to operate on external heat source (non-electric) at +121°C over a 20 minute period.
Components: Aluminium vessel with heat resistant handles. Aluminium cover with heat resistant handles , rubber sealing gasket, pressure valve & safety plug. 1 aluminium rack with 1 lid, for 36 syringes ( 4 syringes 5ml, 16 syringes 2 ml, 16 syringes 1 ml) and 40 needles. Sterilization capacity: 5.5 litres.
Supplied with: 1 x sterilization indicator sticker (pack of 100), 2 x spare safety plugs, 3 x spare sealing gaskets, 1 x plastic bowl for washing syringes, 1 x carrying bag, 1 x user manual in English.
AU414 - Rack Steam Sterilizer, Double Rack
Steam sterilizer, pressure type, double rack, used to sterilize reusable: syringes and needles. Aluminium vessel with high pressure seal suitable for carrying out sterilization using superheated steam. Steam sterilizer designed to operate on external heat source (non-electric) at +121°C over a 20 minute period.
Components: Aluminium vessel with handles. Aluminium cover with handles and rubber sealing gasket. Pressure valve. Safety plug. 2 aluminium racks with 2 lid, for 64 syringes (44 syringes 2 ml, 16 syringes 1 ml, 4 syringes 5 ml) and 80 needles per rack. Sterilization capacity: 9 litres.
Supplied with: 1 x sterilization indicator sticker (pack of 100), 2 x spare safety plugs, 3 x spare sealing gaskets, 1 x plastic bowl for washing syringes, 1 x carrying bag, 1 x user manual in English.
Accessories for Rack Sterilizer
Item Code |
Title |
AU610 |
Aluminium single rack with 1 lid, 36 Syringes (4 syringes 5ml, 16 syringes 2ml, 16 syringes 1ml) and 40 needles. |
AU611 |
Aluminium double rack with 2 lid, 64 Syringes (44 syringes 2ml, 16 syringes 1ml, 4 syringes 5ml) and 80 needles per rack |
AU613 |
Sterilization indicator sticker (pack of 100). |
AU614 |
Safety plugs for rack sterilizer. |
AU615 |
Sealing gaskets for rack sterilizer. |
Autoclaves Pressure Steam Sterilizers (Aluminum) - Economy Mirror / Polished Finish
Construction: These autoclaves are made of 10 gauge aluminum. The drum is deep drawn & the ring on top is riveted. The lid is made by casting. Locking of lid by 6 nuts with rubber gasket seal in between (not metal to metal seal). Two safety valves, pressure gauge, flexible metal rubbing to exhaust air. Includes outer stand, inner aluminum container, inner tripod stand.
Item Code |
Capacity (Lt.) |
Power |
Size |
Type |
AU101 |
20 Lt. |
Electric |
300 x 300mm = 12” x 12” |
Mirror Finish |
AU102 |
20 Lt. |
Non Electric |
300 x 300mm = 12” x 12” |
Mirror Finish |
AU103 |
25 Lt. |
Electric |
300 x 380mm = 12” x 15” |
Mirror Finish |
AU104 |
25 Lt. |
Non Electric |
300 x 380mm = 12” x 15” |
Mirror Finish |
AU105 |
35 Lt. |
Electric |
350 x 380mm = 14"x15" |
Mirror Finish |
AU106 |
35 Lt. |
Non Electric |
350 x 380mm = 14"x15" |
Mirror Finish |
Autoclaves / Pressure Steam Sterilizers (Aluminum, Deluxe Series)
Construction: Superior quality & finish. All these autoclaves are made of 8 gauge aluminum. The drum is deep drawn. The lid is die casted. Locking of lid by 6 nuts with rubber gasket seal in between (no metal to metal seal). Two safety valves, pressure gauge, flexible metal tubing to exhaust air. Includes outer stand, inner tripod stand.
Features:
- Equipped with two stages "over pressure" protection system incorporating a calibrated continuous bleeding Pressure stopcock and pressure release weight valve.
- Pressure Gauge : Colour coded pressure gauge showing internal chamber conditions during the cycle. Sterilization zone in green colour is shown from 15 psi to 20 psi (or 1.034 bar to 1.378 bar) which is equivalent to temperature of 121°c to 127°c. Dial size : 2.5". Dial show measurement in 2 units (i) kg/cm2 (ii) lb/inch2 Full scale dial of pressure gauge is 0-30 lb/ inch2 or 0-2 kg/cm2 Caution zone in red colour.
- Equipped with steam release /control valve and flexible metal exhaust tube.
- For assurance of quality each autoclave is tested to the parameter of successful sterilization.
- Optional "TST" indicator stickers provide independent verification that the correct combination of temperature, steam & time has been achieved for successful sterilization.
- All aluminum deep drawn seamless construction of base unit.
- Heavy cast aluminum lid with six wing nut.
- Easy to use top loading autoclaves.
- Fast 20 min. sterilizing cycle at 121° C.
Item Code |
Capacity (Lt.) |
Power |
Size |
Type |
AU201 |
21 |
Electric |
300 x 300mm = 12” x 12” |
Mirror Finish |
AU202 |
21 |
Non Electric |
300 x 300mm = 12” x 12” |
Mirror Finish |
AU203 |
27 |
Electric |
300 x 380mm = 12” x 15” |
Mirror Finish |
AU204 |
27 |
Non Electric |
300 x 380mm = 12” x 15” |
Mirror Finish |
AU205 |
37 |
Electric |
350 x 380mm = 14"x15" |
Mirror Finish |
AU206 |
37 |
Non Electric |
350 x 380mm = 14"x15" |
Mirror Finish |
*We supply 220V, 50Hz, single phase, electric equipment, unless otherwise specified in your order.
Autoclaves Pressure Steam Sterilizers (Stainless Steel) - Seamless
Construction:These portable vertical autoclaves are made out of thick high quality (14 gauge) stainless steel sheet, deep drawn to cylindrical shape, having no joints and welding. Seamless construction allows no bacteria residue and free from dirt accumulation. Fitted with pressure gauge, safety valve (weight type), seam/pressure release cock, lid handle. Lid is similar to pressure cooker with locking over rubber gasket.
Features:
- Stainless steel seamless construction.
- Portable vertical pressure type, easy to use top loading autoclaves.
- The steam pressure inside with autoclave can develop from 1.10 kgf / sq.cm (15 psi) to 1.25 kgf / sq.cm (18 psi).
- Equipped with top handle pressure gauge and pressure release valve.
Item Code |
Capacity (Lt.) |
Power |
Size |
Type |
AU001 |
30 Lt |
Electric |
350 x 300mm = 14” x 12” |
Mirror Finish |
AU002 |
30 Lt |
Non Electric |
350 x 300mm = 14” x 12” |
Mirror Finish |
*We supply 220V, 50Hz, single phase, electric equipment, unless otherwise specified in your order.
AU850 - Autoclave 10 Litre Electric
- Stainless Steel 304 seamless construction.
- Auto cut-off heating element and indication light.
- With time adjustment facility.
- Dimension : 235mm Dia x 235mm Ht. (with Lid).
Note: Height and capacity adjustable as per customers requirement.

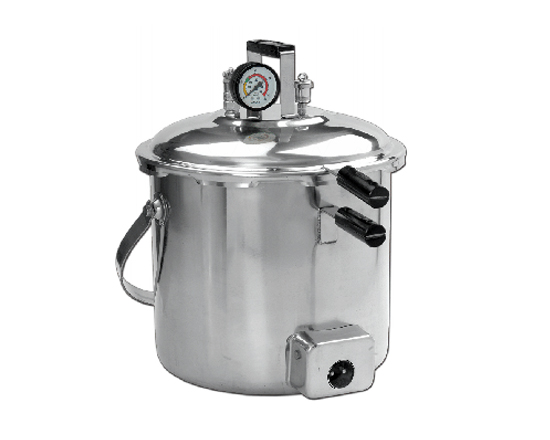

AU855 - Autoclave 10 Litre Non-Electric
- Stainless Steel 304 seamless construction.
- Dimension : 235mm Dia x 240mm Ht. (with Lid).
Note: Height and capacity adjustable as per customers requirement.
AU860 - Autoclave 11 Litre Electric
- Stainless Steel 304 seamless construction.
- Dimension : 220mm Dia x 300mm.Ht. (with Lid).
Note: Height and capacity adjustable as per customers requirement.
AU865 - Autoclave 11 Litre Non Electric
- Stainless Steel 304 seamless construction.
- Dimension : 220mm Dia x 300mm Ht.
Note: Height and capacity adjustable as per customers requirement.
Containers & Baskets for Steam Sterilizers/ Autoclaves
Item Code |
Size |
Type |
|
AU600 |
204mm dia. x 190mm ht. |
Aluminium basket with handle |
|
AU601 |
260mm dia x 230mm ht. |
Aluminium basket with handle |
|
AU602 |
260mm dia x 330mm ht. |
Aluminium basket with handle |
|
AU603 |
300mm dia x 300mm ht. |
Aluminium basket with handle |
|
AU604 |
250mm dia x 51mm ht. |
Aluminium container, low height |
|
AU605 |
300mm dia x 51mm ht. |
Aluminium container, low height |
|
AU640 |
200mm dia x 260mm ht. |
Stainless Steel Wire Basket |
|
AU643 |
270mm dia x 290mm ht. |
Stainless Steel Wire Basket |
|
AU647 |
330mm dia x 370mm ht. |
Stainless Steel Wire Basket |
|
AU650 |
205mm dia x 165mm ht. |
Plastic Autoclavable Perforated Basket with handle |
|
Stainless Steel Wire Mesh Trays And Wire Baskets
- These sterilizing Trays & baskets made in Stainless Steel 304, allow a systematic organization of instrument for sterilization. The comfortable handling provides safety and control through all fields of applications in sterilization. Storage and transportation are also perfectly organized with these baskets and trays.
- Available in various shapes, sizes & designs to accommodate wide range of Surgical Instruments & Equipment.
Item Code |
Dimensions |
AU801 |
500 X 250 X 30mm |
AU803 |
500 X 250 X 50mm |
AU805 |
500 X 250 X 70mm |
AU807 |
500 X 250 X 100mm |
AU809 |
400 X 200 X 30mm |
AU811 |
400 X 200 X 50mm |
AU813 |
400 X 200 X 70mm |
AU815 |
400 X 200 X 100mm |
AU817 |
250 X 250 X 30mm |
AU819 |
250 X 250 X 50mm |
AU821 |
250 X 250 X 70mm |
AU823 |
250 X 250 X 100mm |

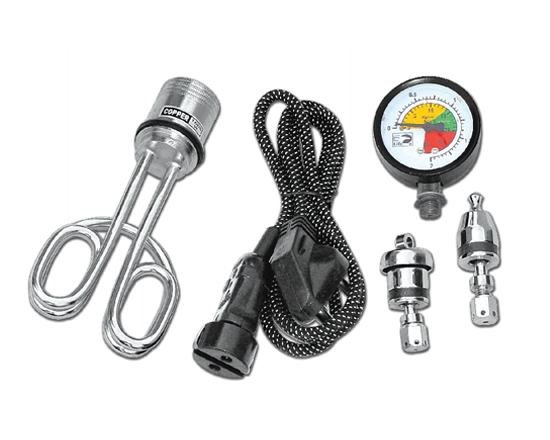

Other Spares/ Accessories for Steam Sterilizers/Autoclaves
Item Code |
Dimensions |
AU613 |
Sterilization indicator sticker (pack of 100). |
AU620 |
Heat resistant handles for super deluxe series (specify size of autoclave) with screws (pair pack) |
AU621 |
Immersion heater for autoclave, 2 kw. |
AU622 |
Rubber gasket ( specify dia of autoclave). |
AU623 |
Pressure gauge 0-30 psi, colour coded. |
AU624 |
Excess pressure release valve. |
AU625 |
Calibrated continuous bleeding stop cock. |
AU626 |
Bakelite wing nut for economy /deluxe series |
AU627 |
Steam release knob. |
AU628 |
Flexible metal exhaust tube with release knob. |
AU629 |
imer 0-60 minutes ( built-in in any electric autoclave). |
AU630 |
Electric cord with plug and socket for autoclave.(to be used with autoclaves electric at 220V / 50 Hz. AC.) |
MZ015 |
Timer 0-60 minutes, independent |
AU741 : Cidex Tray, Stainless Steel

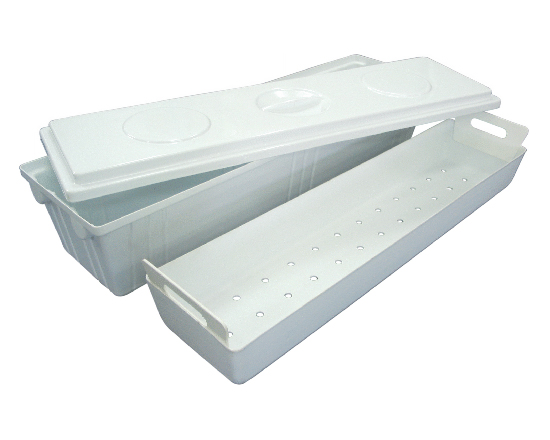

AU653 : Light Weight Disinfection Tray System
- This tray system is a nice sterilizing / disinfecting / soaking tray that is essential for sterilization of certain instruments & equipment which cannot be sterilized under steam & pressure in Autoclaves. These can be also used as a back up to your other sterilizing system.
- The tray includes Outer Tray with lid & a Lift-out drain basket with handles to facilitate lifting of instruments in and out of the soaking solution. Lid protects against spillage and minimizes vaporization.>
- Dimension: Outer tray measures 845mm L x 225mmWx 150mm H
- Volume Capacity: 10 liters appx, [NON AUTOCLAVABLE]
