Stereo Zoom Microscope


Educational Equipments Manufacturer, Exporters & Suppliers - School Educational Equipments Manufacturers & Exporters of Educational Equipments for Lab. Science Lab Products, Teaching Aids, Classroom Instruments, Educational Laboratory

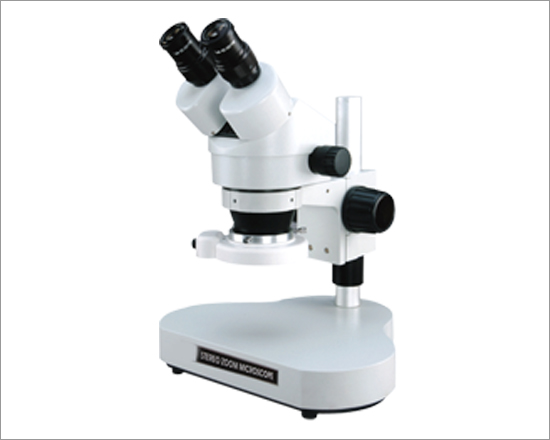

Binocular Stereo Zoom Microscope RSM-8

Code: BIMC0225

  • Binocular tube with an inclination of 45 degree for greater ease of observation .
  • Magnification 7x to 45x
  • Microscope Zooming ratio 6.4:1
  • Rack-Pinion focussing stroke 50 mm.
  • Wide field eyepiece 10x (paired).
  • objective 0.7x to 4.5x.
  • Crisp,erect images with high resolution and excellent stereoscopic effect.
  • Standard working distance 100mm, regardless of magnification.
  • Field of view 28.6-4.4 mm.
  • Interpupillary distance from 54 to 75 mm.
  • Dioptic adjustment with a range of + 5 diopters is possible with both oculars.
  • Binocular body can be rotated a full 360 degree and locked in any position desried.
  • Once brought in focus, image remains clear and sharp throughout the whole zoom range.
  • Dual illumination system having circular fluorescent incident light and transmitted light through solid state built-in tranformer halogen bulb 6volts 20watts.
  • Packed in carboard box withopration manual, vinyl cover etc.

Zoom Stereo Microscope

Code:MCC307

Description
  • High quality, high function and excellent cost performance.
  • Best choose with ergonomic design, sharp image display and wide viewing field.
  • Providing a wide viewing field of F20mm with the zoom ratio of 1:4.5.
  • Ideal instrument in academic, medical and industrial field.

Description
  • High resolution, Wide viewing field, Long working distance
  • Diopter adjustable
  • Zoom objective 0.7-3/ 1-4.5, Zoom ratio 1:4.3/ 1:4.5
  • Binocular head inclined at 45, interpupillary 55-75mm
Code   MCC307
Drawing Tube Binocular head, inclined at 45°
Binocular head, inclined at 60° optional
Trinocular head, inclined at 45° optional
Eyepiece Wide field eyepiece 10×/ Φ20
15×/ 16 optional
20×/ 12 optional
10× Eyepiece with cross hair optional
Objective Zoom objective 0.7×~3× optional
1×~4.5×
Auxiliary objective 2×、0.75X、0.63X、0.5X optional
Zoom Ratio 1:4.3 optional
1:4.5
Working Distance 97mm
Illumination LED Reflection illumination
LED Transmission illumination
Photo Attachment   optional
Video Attachment   optional

Zoom Stereo Microscope

Code:MCC315

Description
  • With high quality optical components, providing sharp and striking contrast image and ensure flat image at big depth of field,Ease the tiredness with ergonomic design.
  • With LED light for both incident and transmitted illumination, Providing even illumination and life expectancy can reach 6000 hours.
  • With Complete eyepieces, objectives and accessories, it is an ideal instrument for industry assembling, inspection and teaching field.
Code   MCC315
Drawing Tube Binocular Viewing Head, Inclined at 45°
Trinocular Viewing Head, Inclined at 45° optional
Eyepiece Extra wide field eyepiece EW10×/22
WF15× optional
WF20× optional
Zoom Objective 0.8×-5×
Zoom Ratio 6.3:1
Working Distance 115mm
Interpupillary Distance 55-75mm
Auxiliary objective 0.5× optional
optional
Glass Insert Glass Insert, Diameter 100mm
Illumination Incident Illumination 100V-240V/ LED
Transmitted Illumination 100V-240V/ LED
Photo Attachment   optional
Video Attachment   optional

Zoom Stereo Microscope


Code   MCC321 MCC323
Viewing Tube Trinocular viewing head, Inclined at 30°
Diopter Adjustment
Eyepiece
Extra wide field eyepiece WF10X/Φ23
WF15X/Φ16 optional optional
WF20X/Φ12 optional optional
WF30X/Φ8 optional optional
WF10X  Eyepiece with cross hair optional optional
Zoom Objective 0.6X-5X
Zoom Ratio 1:8.3
Working Distance 115mm
Interpupillary Distance 55-75mm
Auxiliary objective 0.5X  WD:220mm optional optional
0.7X  WD:125mm optional optional
2X   WD:45mm optional optional
Stage Insert Glass plate, Diameter 125mm
Glass plate, Diameter 100mm
Opal & black acrylic plate, Diameter 125mm
Opal & black acrylic plate, Diameter 100mm
Focusing Range 105mm
Illumination Incident Illumination 100V-240V/LED
Transmitted Illumination 100V-240V/LED
LED ring illuminator   optional optional
L-150A/LED40A Cold light power optional optional
Video Adapter 0.55x    C Mount
1x       C Mount optional optional
Polarization set   optional optional
Dark field attachment   optional optional

Binocular Stereo Zoom Microscope RSM-8A

Code: BIMC0229

Stand is suitable for use in natural light or with optional external illuminators.

Binocular Stereo Zoom Microscope RSM-88

Code: BIMC0233

Transmitted & Incident lights are built in the stand. Long life and low temperature fluorescent lamps are provided for continuous observation.

Binocular Stereo Zoom Microscope RSM-8F

Code: BIMC0237

Large stage is equipped for convenience of work. A long life and low temperature 10W Fluorescent lamp is provided for built in incident light.

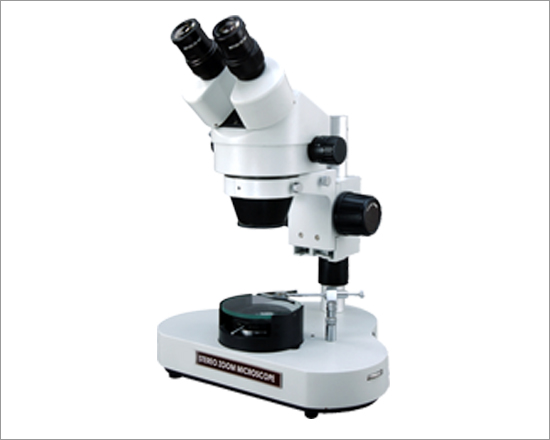

Binocular Stereo Zoom Microscope RSM-8DF

Code: BIMC0241

Jewel Microscope is used to distinguish between genuine and imitation gems, to inspect surface inclusions, to judge production of origin and to inspect polishing. The Microscope is provided with transmitted and incident light system, darkfield attachment and a gem clamp.

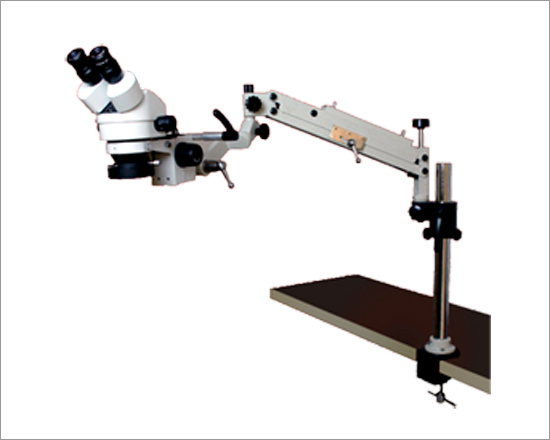

Trinocular Stereo Zoom Microscope RSM-8U

Code: BIMC0245

  • Binocular tube with an inclination of degree for greater ease of observation.
  • Magnification 7x to 45x
  • Microscope Zooming ratio 6.4:1
  • Rack-Pinion focussing stroke 50 mm.
  • Wide field eyepiece 10x (paired).
  • objective 0.7x to 4.5x.
  • Crisp, erect images with high resolution and excellent stereoscopic effect. Standard working distance 100mm, regardless of magnification. Field of view 28.6-4.4 mm.
  • Interpupillary distance from 54 to 75 mm. Dioptic adjustment with a range of + 5 diopters is possible with both oculars. Binocular body can be rotated a full 360 degree and locked in any position desried. Once brought in focus, image remains clear and sharp throughout the whole zoom range. Incident illumination system having circular fluorescent ring light.
  • Packed in cardboard box with opration manual, vinyl cover etc.

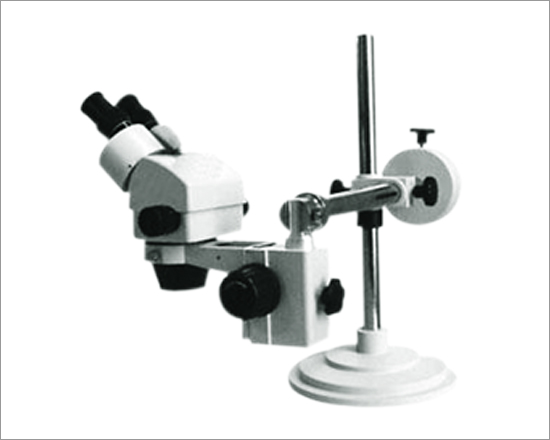

Binocular Stereo Zoom Microscope RSM-8AS

Code: BIMC0249

  • Binocular tube with an inclination of degree for greater ease of observation.
  • Magnification 7x to 45x
  • Microscope Zooming ratio 6.4:1
  • Rack-Pinion focussing stroke 50 mm.
  • Wide field eyepiece 10x (paired).
  • objective 0.7x to 4.5x.
  • Crisp,erect images with high resolution and excellent stereoscopic effect. Standard working distance 100mm, regardless of magnification. Field of view 28.6-4.4 mm. Interpupillary distance from 54 to 75 mm. Dioptic adjustment with a range of + 5 diopters is possible with both oculars. Binocular body can be rotated a full 360 degree and locked in any position desried. Once brought in focus, image remains clear and sharp throughout the whole zoom range. Incident illumination system having circular fluorescent ring light. Packed in cardboard box with opration manual, vinyl cover etc.

Trinocular Stereo Zoom Microscope RSM-9

Code: BIMC0253

  • Trinocular tube with an inclination of 45 degree for greater ease of observation.
  • Magnification 7x to 45x
  • Microscope Zooming ratio 6.4:1
  • Rack-Pinion focussing stroke 50 mm.
  • Wide field eyepiece 10x (paired).
  • objective 0.7x to 4.5x.
  • Crisp,erect images with high resolution and excellent stereoscopic effect. Standard working distance 100mm, regardless of magnification.
  • Field of view 28.6-4.4 mm. Interpupillary distance from 54 to 75 mm.
  • Dioptic adjustment with a range of + 5 diopters is possible with both oculars. Trinocular body can be rotated a full 360 degree and locked in any position desried. Once brought in focus, image remains clear and sharp throughout the whole zoom range. Dual illumination system having circular fluorescent incident light and transmitted light through solid state built-in tranformer halogen bulb 6volts 20watts. Packed in carboard box withopration manual, vinyl cover etc.

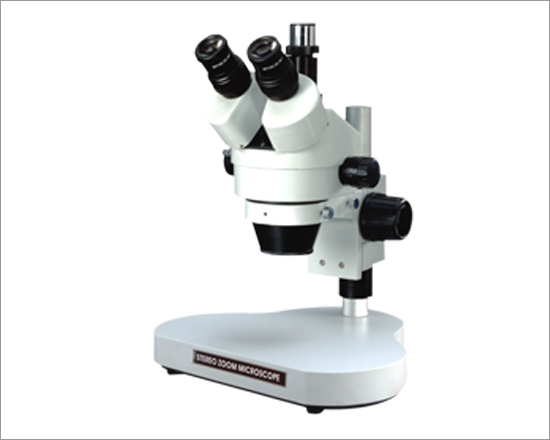

Trinocular Stereo Zoom Microscope RSM-9A

Code: BIMC0257

Stand is suitable for use in natural light or with optional external illuminators.

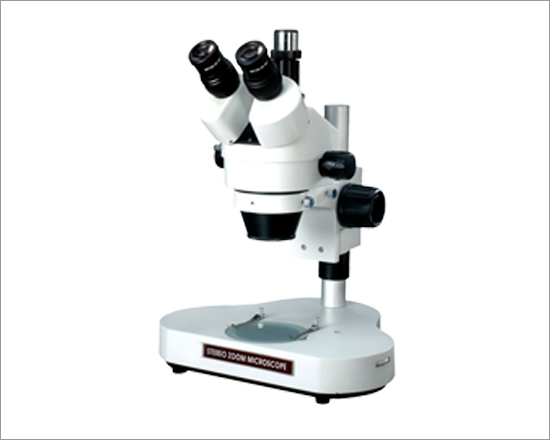

Trinocular Stereo Zoom Microscope RSM-99

Code: BIMC0261

Transmitted & Incident lights are built in the stand. The long life and low temperature fluorescent lamps are provided for continuous observation.

Trinocular Stereo Zoom Microscope RSM-9F

Code: BIMC0265

Large stage is equipped for convenience of work. A long life and low temperature 10W fluorescent lamp is provided for the built in incident light.

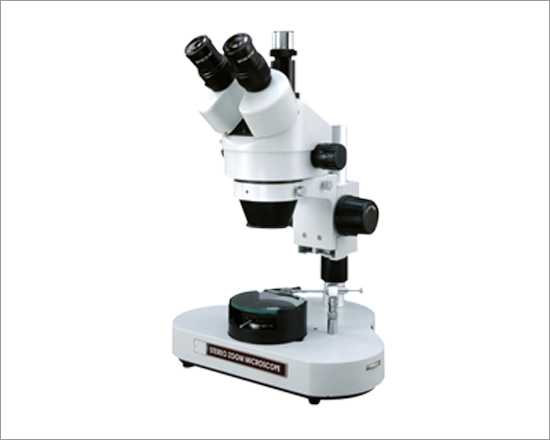

Trinocular Stereo Zoom Microscope RSM-9DF

Code: BIMC0269

The special characterstic of zoom Microscope is that one can observe the object in three dimensions within the field of view. It is ideally suited for Industrial as well as for Biological Research where high precision, maximum working distance and large field coverage is required. The flat field parfocal zoom objectives provide continuously variable magnification from 3.5x to 180x depending upon the eyepiece and auxiliary lenses used.

The model RSM-9 series offer superior quality optics and releable mechanical components. This exceptional optical quality allows users to perform tasks efficiently and maintaining high productivity. A wide variety of stands and illuminators are available to suit many different applications.

JEWEL MICROSCOPE is used to distinguish between genuine and imitation gems, to inspect surface inclusions, to judge production of origin and to inspect polishing. The Microscope is provided with transmitted and incident light system, darkfield attachment and a gem clamp.

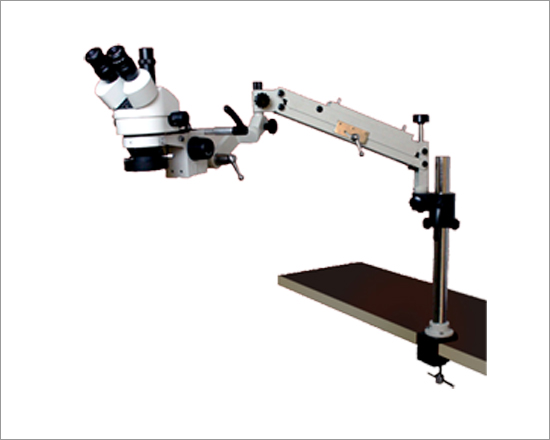

Trinocular Stereo Zoom Microscope RSM-9U

Code: BIMC0273

  • Trinocular tube with an inclination of degree for greater ease of observation.
  • Magnification 7x to 45x
  • Microscope Zooming ratio 6.4:1
  • Rack-Pinion focussing stroke 50 mm.
  • Wide field eyepiece 10x (paired).
  • objective 0.7x to 4.5x.
  • Crisp,erect images with high resolution and excellent stereoscopic effect. Standard working distance 100mm, regardless of magnification. Field of view 28.6-4.4 mm. Interpupillary distance from 54 to 75 mm. Dioptic adjustment with a range of + 5 diopters is possible with both oculars. Trinocular body can be rotated a full 360 degree and locked in any position desried. Once brought in focus, image remains clear and sharp throughout the whole zoom range. Incident illumination system having circular fluorescent ring light. Packed in cardboard box with opration manual, vinyl cover etc.

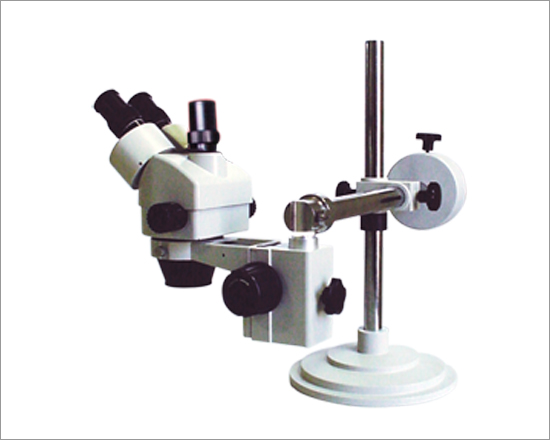

Trinocular Stereo Zoom Microscope RSM-9AS

Code: BIMC0277

  • Trinocular tube with an inclination of degree for greater ease of observation.
  • Magnification 7x to 45x
  • Microscope Zooming ratio 6.4:1
  • Rack-Pinion focussing stroke 50 mm.
  • Wide field eyepiece 10x (paired).
  • objective 0.7x to 4.5x.
  • Crisp,erect images with high resolution and excellent stereoscopic effect. Standard working distance 100mm, regardless of magnification. Field of view 28.6-4.4 mm. Interpupillary distance from 54 to 75 mm. Dioptic adjustment with a range of + 5 diopters is possible with both oculars. Trinocular body can be rotated a full 360 degree and locked in any position desried. Once brought in focus, image remains clear and sharp throughout the whole zoom range. Incident illumination system having circular fluorescent ring light. Packed in cardboard box with opration manual, vinyl cover etc.

Accessories For Stereo/Stereo Zoom Microscope

Code: BIMC0281

  • ZM-1 Spare Eypiece: WF10X-15X-20X (paired)
  • ZM-2 Auxillary Objective: 0.5X & 2X for Stereo Zoom Microscope
  • ZM-3 Dark Field Attachment: consisting of special system and movable Gem clamp.
  • ZM-4 Universal Stand: for convenient examination of large parts or specimen.
  • ZM-5 High Intensity Flourescent Ring Illuminator with circular flourescent tube & power supply.
  • ZM-6 Space circular flourescent tube High intensity circular tube for illuminator.
  • ZM-7 Spare Lamp: 20Watts halogen lamp for incident illuminator.
  • ZM-8 Eyepiece with graticules: Micrometer disc, cross line, graph, accentric circles etc.
  • ZM-9 Polarising Attachment for examination of geological specimen under polarised light.
  • ZM-10 Gliding Stage: For quick scanning of the specimen in x-y direction.
  • FI-1 Fibre Optic illuminator: Single light guide.
  • FI-2 Fibre Optic Illuminator: Double light guide.
  • FI-3 Fibre Optic Illuminator: Ring light guide.
  • SI-7 Incident Halogen Illuminator: Spot light halogen illumination for Stereo Microscope.
  • SI-8 Dark Field Attachment for Embryology: consists of dark field system and a adapter for petri-dishes.
