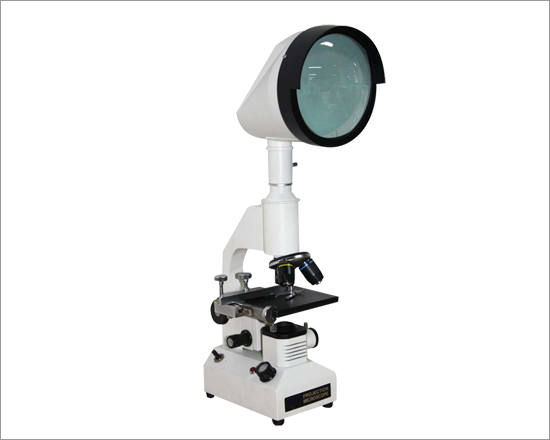

Projection Microscope PRM-11A
Code: BIMC0493
The structure of microscopic specimens becomes visible to the naked eye by taking the projection on the screen, during observation and demonstration to a group of students. The microscopes are compact in design and can easily contrast and distortion free magnified images on a fine ground glass screen.
- Body - Monocular Fixed Straight Tube, length 160mm.
- Nosepiece - Triple revolving nosepiece with accurate centering and positive click stops
- Projection Microscope PRM-11A Stage - Mechanical stage of 135x120mm. Low co-axial drive controls for X-Y movement and cross movement 50X75mm, fully graduated vernier scale.
- Illumination - 20W halogen lamp, 220/110Volts. Lamp slots provided for natural cooling of the illuminator.
- Objectives - Achromatic 4X - 10X- 40XSL.
- Eyepieces - Huygenian 10X and 15X
- Screen - 150mm diameter Glass Projection Screen is provided, can be rotated over 360-degrees on Microscope tube.
- Model PRM-11 - All specifications are as per PRM-11A but has only 2 Objectives 10X & 45X. Screen size 100mm and without mechanical stage.
Projection Microscope PRM-12
Code: BIMC0497
- Model PRM-12 - A dual purpose instrument having halogen projection bulb workable on 220V AC. Equipped with an efficient cooling fan inside, 150mm diameter built-in fine grain glass screen, which is removable to take image on the wall or screen giving a magnification upto 400x. Supplied complete with Vinyl cover, in card board box.
Projection Microscope PRM-12A
Code: BIMC0501
- Model PRM-12 - A dual purpose instrument having halogen projection bulb workable on 220V AC. Equipped with an efficient cooling fan inside, 150mm diameter built-in fine grain glass screen, which is removable to take image on the wall or screen giving a magnification upto 400x. Supplied complete with Vinyl cover, in card board box.
- Model PRM-12A - All specifications same as per Model PRM-12 but with three objectives 5x, 10x & 20x
.
- Model PRM-12B - All specifications same as per Model PRM-12A but with square screen 150x150mm.
- Model PRM-12C - All specifications same as per Model PRM-12, but fitted measuring stage 125x125mm. Equipped with micrometer head 0-25mm reading 0.01mm, life long smooth movement is assured by the incorporation of hard steel rolling balls both in longitudinal and transverse slides.

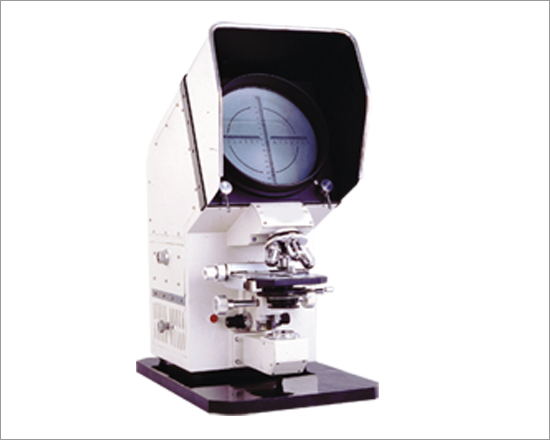

Projection Microscope PRM-15
Code: BIMC0505
- Observation Screen - 200mm graduated screen, built-in Fresnel lens, loop and arrow arrangement and coaxial mechanical stage of size 135X120mm.
- Projection Microscope PRM-15 Nosepiece - Quadruple revolving nosepiece
- Magnification - Provide magnification from 125x to 1000x.
- Illumination - Halogen lamp 12 volts, 100 watts, workable on 220V/110V AC.
- Objectives - 5x, 10x, 20x, 40x.
- Model PRM-18 - Latest and most advanced projection microscope with Binocular head with switch over system facilitating observation of specimen through binocular head as well as on the screen.
- Objectives - 5x,10x,20x & 40x
- Eyepiece - WF 10x paired.
Projection Microscope PRM-15TP
Code: BIMC0509
- Observation Screen - 200mm graduated screen, built-in Fresnel lens, loop and arrow arrangement and coaxial mechanical stage.
- Nosepiece - Quadruple revolving nosepiece
- Magnification - Provide magnification from 125x to 1000x.
- Illumination - Halogen lamp 12 volts, 100 watts, workable on 220V AC.
- Objectives - 5x, 10x, 20x, 40x.
- Model PRM-18 - Latest and most advanced projection microscope with Binocular head with switch over system facilitating observation of specimen through binocular head as well as on the screen.
- Objectives - 5x,10x,20x & 40x
- Eyepiece - WF 10x paired.
